Dental clinic lighting BR160

laboratoryaesthetic medicinefor veterinary clinics

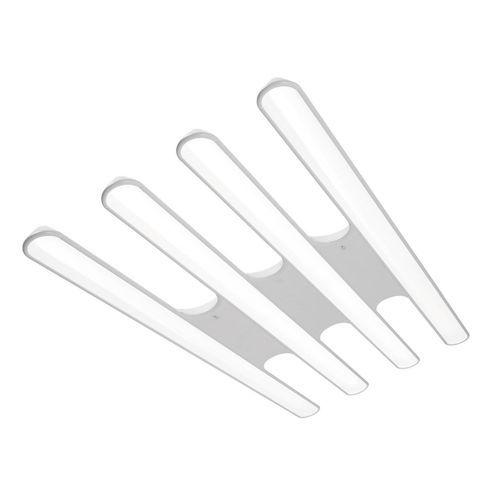

Overview The Brite Tetron is the largest luminaire in the Brite family, engineered to illuminate larger treatment and examination workspaces with precise, colour-accurate, shadow-free and glare-free light. It produces a broad illuminated surface with high output and natural colour rendering, suitable as a primary light source above workstations that require reliable clinical illumination.

Key highlights 4550 lux at 1.2 m; largest model in the Brite series for larger treatment rooms; shadow-free distribution via four light sources; CRI 94 for precise colour rendering.

Light quality and controls Provides glare-free, shadow-free illumination that supports long periods of concentration and detailed visual tasks. Estimated lifetime approximately 50,000 operating hours. Supplied remote control enables dimming and includes two programmable quick-access buttons configurable for procedures such as X-ray viewing or composite work.

Design and ergonomics Parallel light modules direct light to the centre where beams blend into a soft, uniform field. Integrated microprisms and diffusing panels reduce glare and enhance patient comfort and clinician ergonomics. Robust aluminium housing with fully enclosed construction prevents ingress of dirt and bacteria, reducing maintenance needs.

Performance and efficiency Low energy consumption through integrated high-efficiency LED modules optimised with reflectors, diffusing panels and microprisms to maximise usable output. Aluminium cooling structure and advanced LED technology minimise heat emission in the working area.

Typical applications

• Healthcare (examination and treatment rooms)
• Dentistry
• Veterinary and animal care
• Laboratories
• Medical and dental technology
• Beauty clinics
• Offices and other visually demanding workplaces

Included / available options Dimmer with remote control; two programmable quick-access buttons for tailored workflows.

Technical specifications

• Product: BR160
• Light source: LED 212 W
• Illuminance: 4550 lux / 1.2 m
• Colour temperature: 5700 K, CRI 94
• Dimensions: 1200 x 550 x 45 mm
• Weight: 11 kg
• Rating: IP20 / IP21
• Options: Dimmer with remote control
• Estimated lifespan: ~50,000 operating hours
