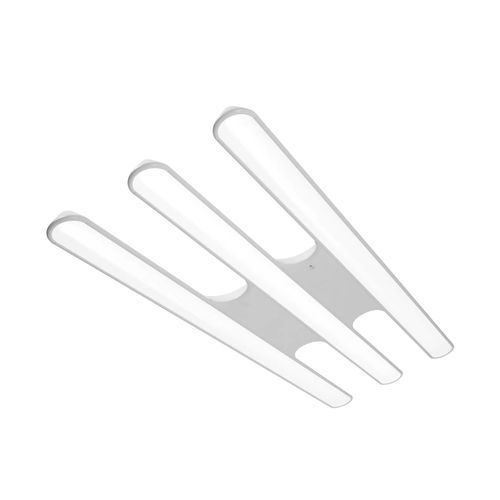

Laboratory lighting BR120

aesthetic medicinefor veterinary clinicsceiling-mounted

Overview
Brite Triton provides powerful, glare-free and shadow-free illumination for professional workspaces. Available in two variants — a uniform 5700 K version and a version with a warm white centre section (3000 K) — the luminaire ensures accurate colour perception and consistent visual clarity across the work area.

Key features

• Glare-free: Microprism optics for high visual comfort
• Triple light source: Even illumination from three parallel sections
• CRI 94: Accurate colour evaluation and assessment
• Dimmable with remote control: Adjustable light level and quick-access functions

Applications and suitability
The Brite Triton (BR120) is suited to environments requiring a large, high-quality lit area — for example small animal clinics, beauty salons, laboratories and precision assembly workstations. It is designed for tasks that demand powerful, colour-accurate and shadow-free lighting.

Dynamic daylight simulation (Brite Triton D)
The Brite Triton D includes Dynamic Light functionality: the warm centre section (3000 K) and the cooler surrounding sections can be adjusted manually. In AUTO mode the warm centre slowly varies to simulate natural daylight changes. The centre section can be switched off for colour matching and evaluation using the supplied remote control.

Design and performance
The Brite series combines microprism diffusion and multiple LED arrays to deliver uniform, flowing light that supports concentration and visual precision. Estimated life is approximately 50,000 operating hours. Optional remote control provides dimming and two programmable quick-access buttons for tasks such as X-ray viewing or composite work.

Construction, maintenance and efficiency

• Maintenance-free and hygienic: Integrated high-quality LED modules and fully enclosed construction prevent ingress of dust and bacteria
• Robust aluminium construction: Shields electrical, magnetic and alternating fields
• Low energy consumption: LED technology with reflectors, diffusers and microprisms for maximum output
• Minimal heat emission: Cooling aluminium design and advanced LEDs reduce heat radiation

Visual ergonomics
Parallel light sources focus light toward the centre where it blends into soft, shadow-free illumination. Hundreds of small LEDs and microprisms distribute light evenly across the workspace, minimising shadows and improving comfort and accuracy. The diffuser and microprism layer eliminate glare and enhance visual ergonomics.

Product specification table
Product: BR120
Light source: LED 159 W
Illuminance: 3450 lux / 1.2 m
Colour temperature: 5700 K (CRI 94)
Dimensions: 1200 x 390 x 45 mm
Weight: 7 kg
Rating: IP20 / IP21
Options: Remote control with dimmer

Technical specifications

• Model: BR120
• Light source: LED 159 W
• Illuminance: 3450 lux at 1.2 m
• Colour temperature: 5700 K (CRI 94)
• Alternate centre section option: 3000 K (available on Brite Triton D)
• Dimensions: 1200 x 390 x 45 mm
• Weight: 7 kg
• Rating: IP20 / IP21
• Options: Remote control with dimmer; programmable quick-access buttons
• Estimated lifespan: approx. 50,000 operating hours
