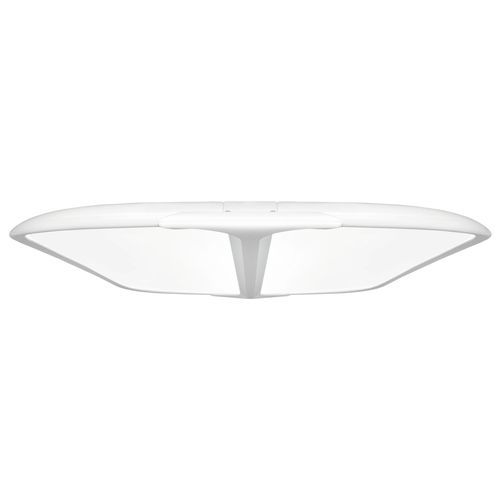

Veterinary clinic lighting CLAIR CL104

hospitalfor dental clinicsceiling-mounted

Overview
Clair is a large LED luminaire designed for clinical environments to deliver high illuminance and excellent colour rendering while minimising radiant heat. The luminaire integrates hygienic materials and a sealed construction for easy cleaning and long-term performance. Optional dynamic daylight control simulates natural daylight shifts by adjusting colour temperature and intensity. Clair is suited to medical rooms, dental clinics, veterinary practices and aesthetic treatment rooms.

Key benefits

• Powerful illumination: 3000 lux at 1.2 m for visually demanding tasks.
• Shadow-free light: uniform distribution across the work surface via frame-projected light and light-distributing prisms.
• Dynamic daylight: AUTO mode gradually adjusts colour temperature and intensity to mimic natural daylight changes.
• Minimal glare: integrated microprisms provide soft, comfortable illumination.
• Low radiant heat: aluminium housing and efficient LEDs reduce heat in the working area.
• Energy efficient: optimized reflectors and diffusers maximize lumen output per watt.

Designed for hygiene and durability
The upper housing is fully aluminium and the luminaire is sealed to prevent dust and dirt ingress, facilitating cleaning and meeting clinical hygiene requirements.

Control and usability
Supplied with a dimmer and remote control offering smooth dimming and two programmable quick-access buttons (e.g. X-ray view, composite work). When dynamic lighting is enabled, colour temperature is adjustable from the remote.

Variants and options

• Clair E: economical version with a simple on/off pull-cord switch.
• Options: upward indirect lighting and dynamic lighting (AUTO) to simulate daylight shifts.

Application and room effect
Upward indirect light softly reflects from ceilings and vertical surfaces to create a brighter, more harmonious space that enhances visual comfort. Effective for rooms up to approximately 15 m².

Technical specifications

• Product: CL104
• Light source: LED 104 – 216 W
• Illuminance: 3000 lux @ 1.2 m
• Colour temperature: 3000 – 5700 K, CRI 94
• Dimensions: 1530 x 670 x 59 mm
• Weight: 16.3 kg
• Ingress protection: IP20
• Included: Dimmer with remote control
• Options: Indirect upward lighting; Dynamic lighting (AUTO)
