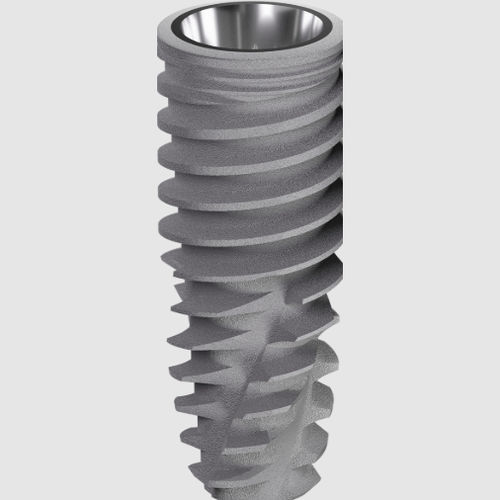

Cylindro-conical dental implant FTK

titaniuminternal hexagontapered

Product overview
The FTK implant line is a tapered dental implant designed with a conical sealing and an internal hex antirotational connection. It is indicated for use in a variety of bone qualities, including low-density or regenerated sites, and is engineered to support reliable primary stability in non-compact bone.

Cylindrical/Conical IMPLANT
The implant combines a tapered apical profile with an internal 11° morse taper locking and antirotational hexagon, allowing bone-level/subcrestal positioning and platform switching for prosthetic versatility.

Key features

• Greater penetration: optimized for under-prepared surgical sites, particularly in the maxilla or regenerated bone with reduced density.
• Variable screwing axis: helical thread geometry enables clinicians to adjust the insertion axis after initial engagement without undue trauma to bone tissue.
• Enhanced penetration for short variants: four wide cutting zones increase cutting efficiency and collect bone fragments to reduce compression.
• Easy centring: tapered apical design facilitates centring in the osteotomy, improving primary stability in under-prepared sites.
• Internal Hex: 11° morse taper locking combined with an antirotational internal hex connection.

Diameters and lengths
Available diameters: Ø3.75 – Ø4.25 – Ø4.75.
Available lengths: 6, 8, 10, 11.5, 13, 16 mm (length availability depends on diameter).
Short implant option: 6 mm length available for Ø4.25 and Ø4.75 for cases with advanced bone resorption where grafting is to be avoided.

Osseodensification Clinical Protocols
Compatible with Versah osseodensification drilling protocols to compact bone rather than remove it, increasing primary stability and enabling ridge expansion when indicated.

Sterility & Packaging
Implants are supplied in sterile packaging which, if intact and stored according to instructions, guarantees implant sterility.

Smart Surgical Kit
The Smart Surgical Kit allows the use of a single surgical instrument set across implant lines (except one-piece implants). Drills accept removable depth stops; the kit can be configured with or without depth stops. Dedicated screwdrivers and a dynamometric ratchet are available for restorative torque control.

Data Sheet (summary)
Root shape: root form (tapered conical apex)
Connection: 11° morse taper locking with antirotational hex
Positioning: Bone level – Subcrestal
Platform Switching: Yes
Prosthetic Platform: Unique
Surface treatment: BWS®
Diameters: Ø3.75 – Ø4.25 – Ø4.75
Lengths: 6–8–10–11.5–13–16 mm

Technical specifications

• Morphology: root shape with tapered conical apex
• Connection geometry: internal hex with 11° morse taper locking and antirotational hexagon
• Positioning: bone level, subcrestal placement
• Platform switching: yes
• Prosthetic platform: unique platform for the line
• Surface treatment: BWS® surface
• Available diameters: Ø3.75, Ø4.25, Ø4.75
• Available lengths: 6 mm, 8 mm, 10 mm, 11.5 mm, 13 mm, 16 mm (6 mm short implant available for Ø4.25 and Ø4.75)
• Thread design: helical-shaped thread allowing axis variation after insertion
• Cutting features: four wide cutting zones to improve penetration and collect bone fragments
• Apical design: tapered apical portion to facilitate centring in the surgical site
• Clinical protocol compatibility: supports osseodensification (Versah protocol) to compact bone and increase primary stability
• Sterility: supplied in sterile packaging
• Surgical kit compatibility: compatible with Dental Tech Smart Surgical Kit (interchangeable drills with depth stops; dedicated screwdrivers and dynamometric ratchet available)
