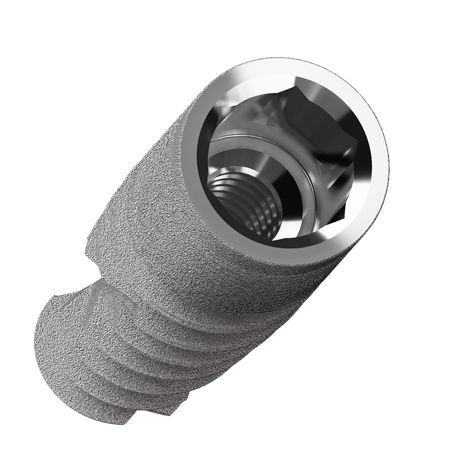

Tapered dental implant FTC

titaniuminternal hexagontapered

Overview
Narrow implant with internal connection designed for narrow alveolar ridges and limited inter-tooth or bone space. Suitable for anterior sites where reduced diameter is required.

Indications
Indicated for maxillary lateral incisors and mandibular central and lateral incisors. Intended for clinical situations with narrow alveolar ridges, limited bone volume or tight interdental spacing.

Connection
Internal Hex: an antirotational hexagon geometry adapted to small-diameter implants, providing a standardized prosthetic interface.

Diameters and Lengths
Available diameter: Ø3.25. Available lengths include 8, 10, 11.5, 13 and 16 mm (some variants listed as 10, 11.5, 13 and 16 mm depending on configuration). The implant spiral design facilitates ridge expansion and supports primary stability in low-density bone.

Active Implant

• Reduced risk of damage to adjacent teeth and perforation of lingual or buccal cortical plates.
• High self-tapping thread performance: promotes bone condensation and improved primary stability in complex cases and post-extraction sites.

Osseodensification Clinical Protocols
Compatible with the Versah osseodensification drilling protocol, which compacts bone rather than removing it, increasing primary stability and allowing ridge expansion.

Guaranteed sterility
Supplied in sterile packaging that, if intact and stored correctly, preserves sterility and protects the implant from external contamination.

Smart Surgical Kit
“Smart Surgical Kit” enables use of a single set of surgical instruments across implant lines (excluding one-piece line). Drills include removable depth stops; dedicated screwdrivers and a torque ratchet complete the kit. Kit composition can be selected with or without depth stops.

Data Sheet
Morphology: Root shape
Connection: Internal Hex
Positioning: Bone Level
Platform Switching: Yes
Prosthetic Platform: Single
Surface treatment: BWS®
Diameter: Ø3.25
Lengths: 8 – 10 – 11.5 – 13 – 16 mm (some variants: 10 – 11.5 – 13 – 16 mm)

Technical specifications

• Series: SLIM IMPLANT LINES
• Brand: Dental Tech
• Connection: Internal Hex (antirotational hexagon)
• Diameter: Ø3.25
• Available lengths: 8, 10, 11.5, 13, 16 mm (variants may list 10, 11.5, 13, 16 mm)
• Positioning: Bone Level
• Platform switching: Yes
• Prosthetic platform: Single
• Surface treatment: BWS®
• Morphology: Root shape
• Clinical options: Compatible with Versah osseodensification protocol
• Packaging: Supplied in sterile packaging
