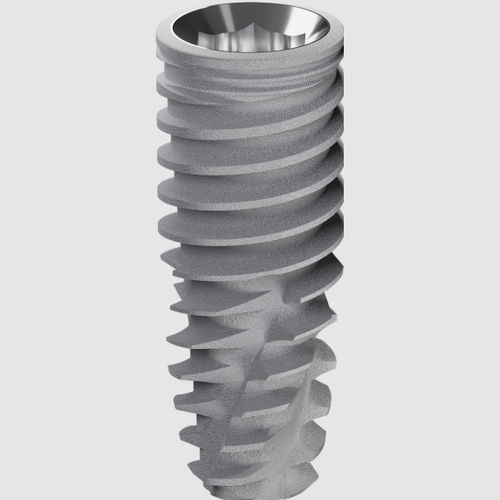

Tapered dental implant FTZ

internal hexagonscrewshort

Overview
Bone level implant with universal internal connection intended for a range of bone qualities and clinical indications. Designed to support primary stability in under‑prepared and regenerated sites while enabling prosthetic versatility.

Key Features

• Greater penetration: indicated for surgical sites that are under-prepared, particularly in the maxilla and in regenerated areas with less compact bone tissue.
• Adjustable screwing axis: helical-shaped thread permits variation of the implant screwing axis after initial insertion without additional trauma to bone.
• Internal Hex connection: 45° inclined plane with anti-rotational hexagon, a widely adopted connection geometry for prosthetic components.
• Enhanced cutting capacity: four wide cutting zones increase penetration capability and collect bone fragments, reducing compression during insertion.
• Easy positioning: tapered apical portion facilitates centring in under-prepared osteotomies and supports achievement of primary stability.
• Sterile packaging: implants supplied in sterile packaging which protects the product if undamaged and correctly stored.
• Smart Surgical Kit: a single surgical instrument kit compatible across implant lines (except the one-piece line); drills include depth stops; screwdriver and torque ratchet included.
• Osseodensification protocols supported: compatible with Versah drilling protocols to compact bone, increase primary stability and enable ridge expansion.

Diameters and Lengths
Available implant diameters and lengths are selected according to surgical protocol and bone type.

Short Implant
Permits surgical solutions without bone grafting even in advanced resorption cases. Certain diameters available in 6 mm length.

Data Sheet
Morphology: Root shape
Connection: Universal internal hexagon
Positioning: Bone Level
Platform Switching: Yes
Prosthetic Platform: Unique
Surface treatment: BWS®
Diameters: Ø3.75 – Ø4.25 – Ø4.75
Lengths: 6–8–10–11.5–13–16 mm

Notes
By modulating the surgical protocol the system is indicated for all bone types and can achieve good primary stability even in non-compact bone. Available lengths depend on implant diameter.
