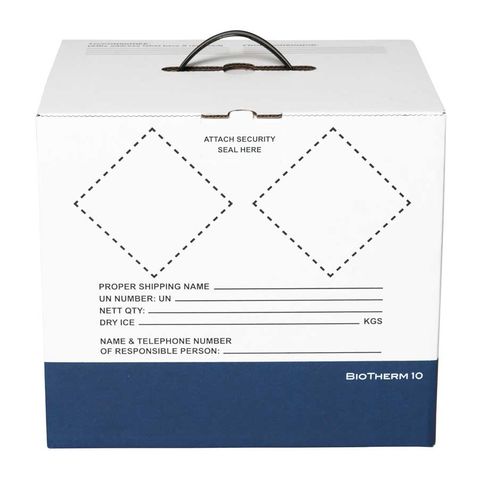

Biological samples packaging box BioTherm 10

transportpapertemperature-controlled

Overview
The BioTherm range of 2–8°C and Controlled Room Temperature 15–25°C transport solutions is compliant with IATA, ADR and DOT (49 CFR) regulations, enabling secure and regulatory-compliant shipment of biological and clinical samples. Systems are qualified to protect sample integrity for up to 96 hours under the specified temperature exposures. Each unit is supplied with handles and compliance labelling for correct handling throughout the regulated cold chain.

Applications

• Infectious samples
• Diagnostic samples
• Clinical trials
• Screening programmes
• Eradication schemes

Key features

• 2–8°C systems qualified against the Intelsius High Performance Quad Profiles for robust thermal protection year-round
• 15–25°C systems qualified against the Intelsius Controlled Room Temperature Profiles for ambient shipments
• Suitable as temperature-controlled overpacks for Category A and Category B regulated solutions
• Supplied with handles and regulatory compliance labelling

Available configurations / Typical variation details

• 2°C–8°C — Single Unit: External Dims – 357 mm × 309 mm × 315 mm; Payload Dims – 192 mm × 142 mm × 79 mm; Payload Volume – 2.1 L; Duration – 48 hours; Mass – 4.1 kg
• 2°C–8°C — Full Pallet (40 Single Units): External Dims – 357 mm × 309 mm × 315 mm; Payload Dims – 192 mm × 142 mm × 79 mm; Payload Volume – 2.1 L; Duration – 48 hours; Mass – 4.1 kg
• 15°C–25°C — Single Unit: External Dims – 357 mm × 309 mm × 315 mm; Payload Dims – 195 mm × 145 mm × 125 mm; Payload Volume – 3.5 L; Duration – 60 hours; Mass – 6.1 kg
• 15°C–25°C — Full Pallet (40 Single Units): External Dims – 357 mm × 309 mm × 315 mm; Payload Dims – 195 mm × 145 mm × 125 mm; Payload Volume – 3.5 L; Duration – 60 hours; Mass – 6.1 kg

Technical specifications

• Model name: BioTherm 10
• Temperature ranges available: 2°C–8°C and 15°C–25°C
• Qualification: Systems qualified to protect sample integrity for up to 96 hours under specified temperature exposures
• Compliance: IATA, ADR and DOT (49 CFR)
• External dimensions (all variants): 357 mm × 309 mm × 315 mm
• Payload dimensions (2–8°C single): 192 mm × 142 mm × 79 mm
• Payload volume (2–8°C single): 2.1 L
• Duration (2–8°C single): 48 hours
• Mass (2–8°C single): 4.1 kg
• Payload dimensions (15–25°C single): 195 mm × 145 mm × 125 mm
• Payload volume (15–25°C single): 3.5 L
• Duration (15–25°C single): 60 hours
• Mass (15–25°C single): 6.1 kg
• Features: supplied with handles and regulatory compliance labelling for regulated cold chain handling
