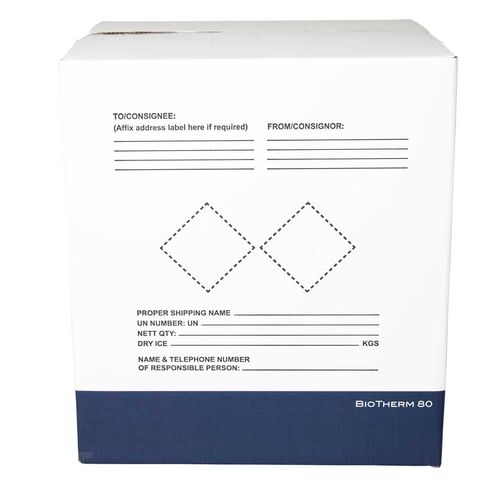

Biological samples packaging box BioTherm 80

transportpapertemperature-controlled

Overview
The BioTherm 80 systems deliver validated passive temperature-controlled shipping for 2-8°C and controlled room temperature 15-25°C, compliant with IATA, ADR and DOT (49 CFR) transport regulations. Systems are qualified to preserve sample integrity for up to 96 hours and include handling features and regulatory labelling to support secure, compliant movement across the cold chain.

Typical applications

• Infectious samples
• Diagnostic and clinical samples
• Clinical trials and biobanking
• Screening programmes
• Eradication and surveillance schemes

Key features

• 2-8°C systems qualified against high-performance quad profiles for robust year-round thermal protection
• 15-25°C systems qualified to controlled room temperature profiles for ambient shipments
• Suitable as temperature-controlled overpacks for Category A and Category B compliant solutions

Technical specifications

• Temperature ranges: 2-8°C and 15-25°C
• Qualified duration: up to 96 hours
• External dimensions (typical): 570mm x 520mm x 635mm
• Shipping configurations: Single unit; Full pallet (8 single units)
• Season pack-out options: Summer system; Winter system
• Pre-conditioned option: configurable (Yes/No)
• Example variations:
  • SKU BT072P (single unit example): Payload dims 345mm x 260mm x 315mm; Payload volume 28.3 L; Duration 96 hours; Mass 17.2 kg
  • SKU BT073P (single unit alternative): Payload dims 370mm x 230mm x 310mm; Payload volume 26.4 L; Duration 96 hours; Mass 19.6 kg
