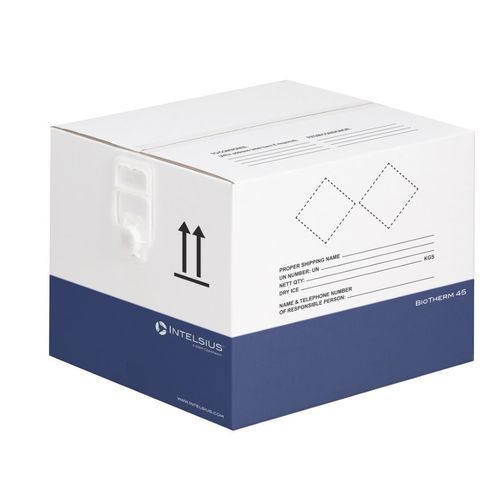

Biological samples packaging box BioTherm 45

transportpapertemperature-controlled

Overview
The Intelsius BioTherm 45 is a temperature-controlled transport system engineered for secure shipment of biological and clinical samples at 2-8°C or 15-25°C. It is designed for regulated cold chain logistics and laboratory-to-laboratory distribution.

Performance and compliance

• Fully compliant with IATA, ADR and DOT (49 CFR) transport regulations for biological materials.
• Qualified to maintain sample integrity for up to 96 hours across both 2-8°C and 15-25°C profiles.
• Qualification performed against appropriate Intelsius thermal profiles for year-round and ambient shipments.

Applications

• Infectious samples
• Diagnostic specimens
• Clinical trial shipments
• Screening and surveillance programs
• Eradication and outbreak response logistics

Key features

• Available for 2-8°C (high-performance quad profiles) and 15-25°C (controlled room temperature) shipments.
• Qualified durations up to 96 hours depending on configuration and packing.
• Suitable as temperature-controlled overpacks for Category A and Category B regulated solutions.

Technical specifications

• Brand: Intelsius
• Model / Product name: BioTherm 45
• Regulatory compliance: IATA, ADR, DOT (49 CFR)
• Qualified duration: up to 96 hours
• Temperature ranges available: 2-8°C and 15-25°C
• External dimensions (typical): 570 mm x 520 mm x 440 mm
• Payload option A (internal): 345 mm x 325 mm x 175 mm — ~19.6 L
• Payload option B (internal): 374 mm x 319 mm x 225 mm — ~26.8 L
• Mass (varies by configuration): examples 9.9 kg, 11.5 kg, 18.1 kg

Available configurations & SKUs

• Single unit and full pallet (16 single units) shipping configurations.
• Sample SKUs / variants: BIO45S (main product), BT070P, BT071P, BT088 and pallet variants (e.g. BT071P-PALL16, BT088-PALL16).
• Some SKUs offer pre-conditioned options (selected variants shown as pre-conditioned entries).

Handling and ordering

• Each system includes handles and factory-applied compliance labelling for regulated cold chain handling.
• Select temperature range, conditioning and shipping configuration when ordering to match your shipment profile.
