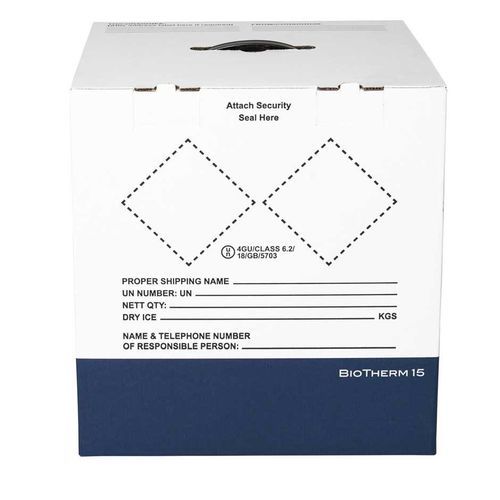

Biological samples packaging box BioTherm 15

transportpapertemperature-controlled

Full description
The BioTherm range of 2–8 °C and Controlled Room Temperature 15–25 °C shipping systems are fully compliant with IATA, ADR and DOT (49 CFR) transport regulations, enabling secure and compliant shipment of samples throughout the cold chain.
These systems are qualified to preserve sample integrity for up to 96 hours at both 2–8 °C and 15–25 °C. Each unit is supplied with handles and regulatory compliance labelling to support careful handling during transport.

Applications

• Infectious samples
• Diagnostic samples
• Clinical trials
• Screening programmes
• Eradication schemes

Key features

• 2–8 °C variants qualified against Intelsius High Performance Quad Profiles for robust thermal protection year-round
• 15–25 °C variants qualified against Intelsius Controlled Room Temperature Profiles for ambient shipments
• Suitable as temperature-controlled overpacks for Category A and Category B compliant solutions

Technical specifications

• Model: BioTherm 15 — Typical external dimensions: 403 mm x 396 mm x 416 mm; Duration: 96 Hours.
• Variant (2°C–8°C — Single Unit, SKU: BT054P, variation_id: 7654): Payload dimensions 225 mm x 145 mm x 160 mm; Payload volume 5.2 L; Mass 6.0 KG; Duration 96 Hours.
• Variant (2°C–8°C — Full Pallet - 24 Single Units, SKU: BT054P-PALL24, variation_id: 8269): Same physical dimensions and payload as single unit; price and commercial pallet configuration available.
• Variant (2°C–8°C — Pre-conditioned option, SKU: PREPBT054P, variation_id: 7655): External dims 403 mm x 396 mm x 416 mm; Payload dims 225 mm x 145 mm x 160 mm; Payload volume 5.2 L; Mass 6.0 KG; Duration 96 Hours.
• Variant (15°C–25°C — Single Unit, SKU: BT086, variation_id: 7656): External dims 403 mm x 396 mm x 416 mm; Payload dims 189 mm x 189 mm x 185 mm; Payload volume 6.6 L; Mass 7.6 KG; Duration 96 Hours.
• Variant (15°C–25°C — Full Pallet - 24 Single Units, SKU: BT086-PALL24, variation_id: 8270): Same external dims and payload as 15–25 °C single unit; commercial pallet configuration available.
