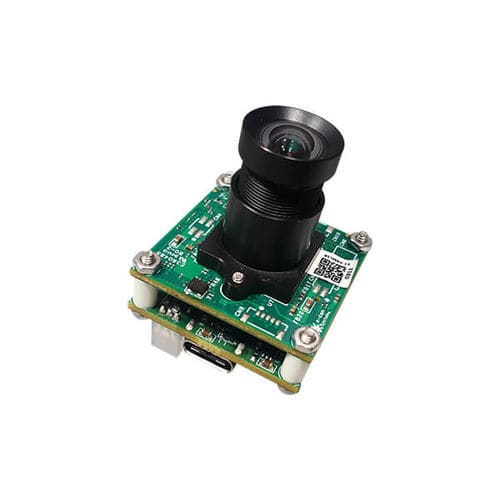

See3CAM_CU55M is the latest 5MP Monochrome camera in e-con Systems' family of USB 3.1 Gen 1 UVC cameras. Based on the AR0521, it delivers stunning low-noise image quality. Backed by 2.2μm x 2.2μm pixel BSI technology, it produces monochrome images of exceptional quality that offer the best tonal contrast standards in the marketplace.
See3CAM_CU55M includes a high level of SNR, which guarantees low noise in all conditions and Near Infrared (NIR) responsivity, which ensures amazing image quality in a variety of lighting conditions. See3CAM_CU55M is a breakthrough invention for industries such as Iris and Biometric Authentication, Digital Microscopy, Biomedical Diagnostic Equipment, Barcode Recognition, and other businesses that require acute magnification.
Houses 5MP onsemi® AR0521 Image Sensor
Fixed Focus
Exposure: up to 10 seconds
Output format: Y8 (8 bits/pixel) and Y12 (12 bits/pixel)
Frame Rate: Streams Full HD @ 60 fps & 5MP @ 30 fps
Supported OS: Windows, Linux, Android* and MAC **
USB 3.1 Gen 1 device with Type-C reversible interface connector
UVC compliant: No additional drivers required. Also backward compatible with USB 2.0 hosts
10 pin GPIO Header
External Hardware Trigger Input
Unique ID for each camera
Operating Voltage: 5V +/- 5%
Operating Temperature Range: -30°C to 70°C
Power requirements:
Max: 1.175W
Min: 0.740W
Size in mm (l x b x h):
Without Lens: 30 x 30 x 30.2 mm
