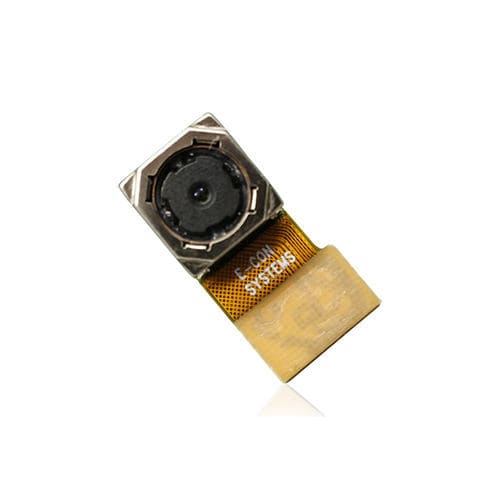

Telemedicine camera module e-CAM51_USB

digitalCMOS5 Mpx

Houses e-CAM52A_5640_MOD - 5MP OmniVision OV5640 CMOS Image Sensor Auto Focus Built-in microphone support UVC compliant: No additional drivers required Overview e-CAM51_USB is a 5MP auto focus USB camera module is based on OV5640 CMOS sensor. This high-speed USB board camera is fully compliant with USB Video Class (UVC) 1.0 Standard, the USB Audio Class 1.0 Standard. So, video streaming through UVC and audio streaming through UAC is possible without any special drivers on Operating Systems that have built-in support for these UVC and UAC standards. e-CAM51_USB, USB 2.0 UVC Camera Module enables 5MP still image capturing along with the 720p video streaming capability. Key features: Refer pdfDatasheet  for complete frame rate details. Output format: Uncompressed YUV2 & compressed MJPEG Supported OS: Windows, Linux, Android * and MAC ** USB 2.0 device with Mini-B interface connector 4 General purpose pins User Configurable GPIOs (1 Input and 1 Output) 1 External hardware trigger for still capture 1 Predefined GPIO input for Flip/Mirror Unique ID for each camera Lightweight, versatile, and portable design Module features: Sensor: OV5640 from OmniVision Focus Type: Auto focus Chroma: Color Shutter Type: Electronic Rolling Shutter Optical Format: 1/4" Output Format: YUV4:2:2, YCbCr422 and compression Pixel Size: 1.4μm x 1.4μm Array Size: 2592 (H) x 1944 (V) Holder: M12 (S-Mount) Effective focal length: 3.42 mm SNR: 36 dB Dynamic Range: 68 dB FOV: 65.88°(D), 54.72°(H), 42.61°(V)(with the lens provided by e-con) Electrical & Mechanical: Operating Voltage: 5V +/- 5% Operating Temperature Range: 0°C to 50°C
