Surgical camera Tara

digital3Dfixed

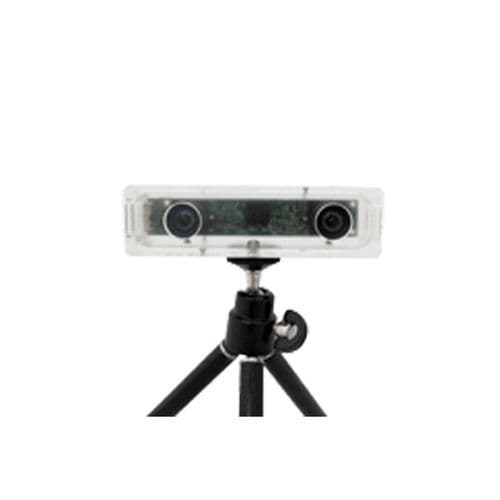

Fixed Focus Global Shutter Houses 6-axis IMU Tara is a UVC- compliant 3D Stereo camera based on MT9V024 stereo sensor from onsemi® which supports WVGA((2*752)x480) at 60fps over USB 3.0 in uncompressed format. This Stereo camera provides two synchronized sensor frame data interleaved side by side to the host machine over USB 3.0 interface. Tara can be used by customers to develop their Stereo Camera algorithms and also by customers who would want to integrate Stereo Camera in their product design. e-con Systems® 3D Stereo camera is ideal for applications such as Depth Sensing, Disparity Map, Point Cloud, Machine vision, Drones, 3D video recording, Surgical robotics, etc. Key features: Refer  pdfDatasheet for complete frame rate details. Output Format: 8-bit/10-bit Monochrome Supported OS: Windows, Linux, Android* and MAC ** WVGA 752(H) x 480(V) (360690 pixels) sensors output images in 8-bit/10-bit greyscale format Synchronous Parallel Monochrome 10bit video data at 60 fps per sensor Baseline distance of 60mm Depth ranges from 50cm to 300cm S-mount lens holder (M12 P0.5) with pre-calibrated S-mount lens pair Unique ID for each camera Interface: Interface: USB 3.0 device Connector: Micro-B connector UVC Compliant - no additional drivers required Backward compatible with USB 2.0 hosts with limited features and capabilities Module Features: Sensor: MT9V024 from onsemi® Focus Type: Fixed focus Chroma: Monochrome Shutter Type: Global Shutter Optical Format: 1/3" Output Format: 8-bit/10-bit Monochrome Pixel Size: 6μm x 6μm Sensor Active Area: 750(H) x 480(V) Array Size: 750(H) x 480(V) Responsivity: 4.8 V/lux-sec (550 nm)
