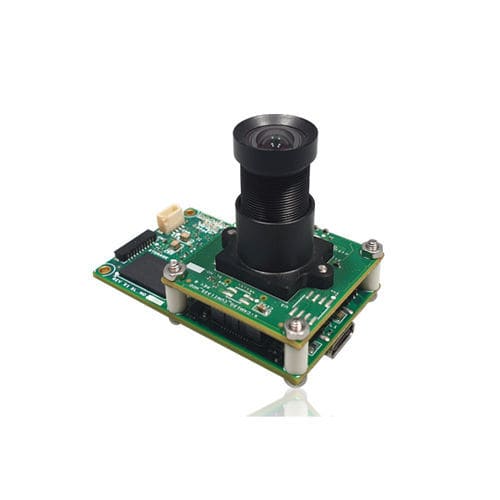

Ophthalmology camera module FSCAM_CU135

digital4K13 mpx

Fixed Focus Rolling shutter with global reset mode # 2 Gb DDR3 SDRAM for storing the frames On-board high performance ISP Demand based frame transfer mode to enable bandwidth sharing among multiple cameras FSCAM_CU135 is a first frame buffer camera in the FRAMEsafe™ camera series. It is a 13 MP Fixed focus USB camera with advanced multi frame buffer for enhanced reliability. It has 2 Gb DDR3 SDRAM to store and retrieve the entire frame without losing data even at very high speeds. FRAMEsafe™ is the latest series of USB UVC Cameras, with a one-of-a-kind inbuilt buffer mechanism. It ensures speed, flexibility and stability while transferring images over the USB interface. Powered by e-con's proprietary FloControl™ technology, FRAMEsafe™ cameras support on-demand image capture capability, which can be seamlessly and simplistically controlled from the host application. The effective decoupling of camera image capture from the USB communication allows multiple FRAMEsafe™ cameras to be used on the same host processor - without losing the frames from any camera. This camera can achieve up to 816fps for custom Region of Interest (ROI) resolutions. Key features: Up to 816 fps for Custom ROI * Refer pdfDatasheet for complete frame rate details. Output format: Uncompressed UYVY and Compressed MJPEG Supported OS: Windows, Linux, Android ** and MAC *** Daisy Chain Trigger support iHDR support 10 Pin and 4 pin GPIO header for daisy chain External Hardware Trigger Input Unique ID for each camera Lightweight, versatile, and portable two-board solution
