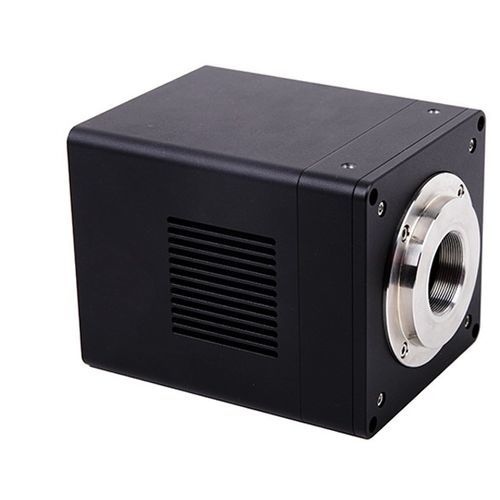

Camera for life sciences applications SC2020UV-ITR

digitalHDRhigh dynamic range

The EHD SC2020UV-ITR series industrial USB3.0 camera, featuring the GSENSE2020BSI monochrome sCMOS sensor, is designed to capture high-resolution images with minimal noise. Here are some key features of this camera: Sensor: GSENSE2020BSI: 4.0MP, 1.2″ frame, back-illuminated sCMOS monochrome sensor. Pixel Size: 2048×2048 pixels with a size of 11×11µm, allowing for detailed imaging with good sensitivity. Cooling and Image Quality: The sensor chip is equipped with a two-stage Peltier cooler, reducing the temperature to -40°C under ambient conditions, which significantly improves the signal-to-noise ratio (SNR) and reduces image noise. This is particularly beneficial for capturing clear and precise images in low-light or high-dynamic range conditions. The camera’s smart thermal design ensures efficient heat dissipation, preventing moisture accumulation, while the electric fan further accelerates cooling. Resolution and Bit Depth: The camera supports high-resolution, low-noise imaging with 16-bit A/D conversion, guaranteeing detailed and accurate images. It offers 8-bit, 11-bit, 12-bit, and 16-bit HDR output options for different imaging requirements, especially when dealing with high dynamic range scenes. Connectivity and Compatibility: The camera utilizes the USB3.0 interface for fast data transfer, making it compatible with most industrial computer systems. It also has 2 GPIO’s and Trigger IN/OUT, allowing for synchronized operation with other equipment in automated or experimental setups. It includes a C-Mount, with an optional F-Mount adapter for flexible lens mounting options.
