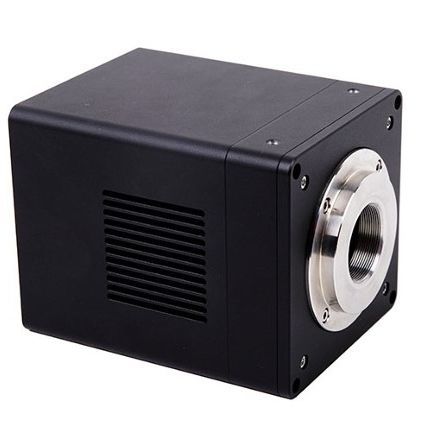

Camera for life sciences applications SC9701UV-ITR

digital1280 x 1024sCMOS

The EHD SC9701UV-ITR series industrial USB 3.0 camera with the GLUX9701BSI sensor is a highly capable imaging device designed for demanding applications. Here’s a breakdown of its key features: Sensor Specifications: Sensor Type: 1.3 MP backilluminated sCMOS monochrome sensor (GLUX9701BSI). Pixel Size: 9.76 x 9.76 µm. Light Sensitivity: Sensitive across a broad wavelength range from 200 to 1100 nm, making it suitable for both infrared (IR) and ultraviolet (UV) imaging. Low Light Performance: The high sensitivity and cooling features allow it to capture clear images in low-light environments, which is ideal for scientific and industrial applications where light levels are often low. Cooling and Noise Reduction: Peltier Cooling: The sensor is equipped with a two-stage Peltier cooler, capable of reducing the temperature to -40°C below ambient temperature. This cooling system minimizes thermal noise and significantly improves the signal-to-noise ratio (SNR), providing high-quality, noise-free images. Heat Radiation Efficiency: The smart structural design, combined with an electric fan, helps dissipate heat efficiently and prevent moisture build-up, which could affect image quality and sensor performance. Data Transfer and Interface: USB 3.0 Interface: Fast data transfer is supported through the industry-standard USB 3.0 interface, ensuring high-speed communication and minimal lag when capturing images or video. A/D Conversion: The 16-bit analog-to-digital conversion ensures high-resolution and low-noise images with excellent image fidelity. Trigger and GPIO: The camera is equipped with two General-Purpose Input/Output (GPIO) pins
