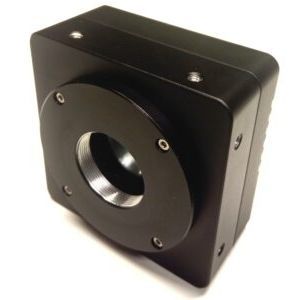

Camera for life sciences applications SCA9701-UV-TR

digitalhigh dynamic range2048 x 2048

The SCM9701-UV-TR camera is a versatile imaging solution, equipped with the GPIXEL GLUX9701BSI back-illuminated sCMOS sensor. This sensor features a 1″ format with 1208×1024 pixels, each measuring 9.76×9.76 µm. Below are key features and capabilities of this camera: Key Features: Resolution and Sensor: The camera offers a 1208×1024 pixel resolution using the GPIXEL GLUX9701BSI back-illuminated sCMOS sensor. Pixel Size: Each pixel is 9.76×9.76 µm, enabling high image detail. Frame Rate: The camera supports a maximum frame rate of 30 fps at full resolution. Low Light Performance: The SCM9701-UV-TR has exceptional light sensitivity, with a very low noise level of <2e-, making it ideal for low-light imaging applications. Exposure Time: The camera allows for a maximum exposure time of 60 seconds, which is beneficial for capturing long-exposure images or for use in very low-light conditions. Gain Settings: It features selectable Low Conversion Gain (LCG), High Conversion Gain (HCG), and High Dynamic Range (HDR) modes, offering flexibility in handling various lighting conditions. Bit Depth: The camera provides selectable 8-bit or 16-bit output, allowing users to choose between lower data sizes or higher precision in measurements. External Trigger I/O: A notable addition is the external trigger I/O function, providing users the ability to synchronize the camera with other systems or events. Sensitivity: Spectral Range: The camera is sensitive across a wide range, from 200 to 1100 nm, enabling it to capture images in both the infrared (IR) and ultraviolet (UV) spectrums.
