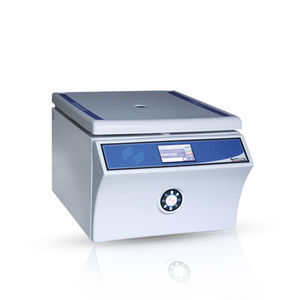

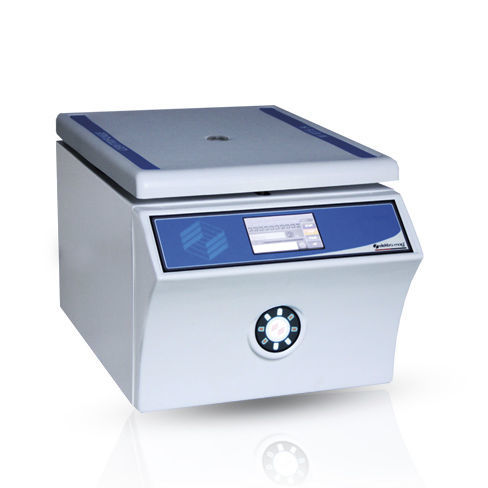

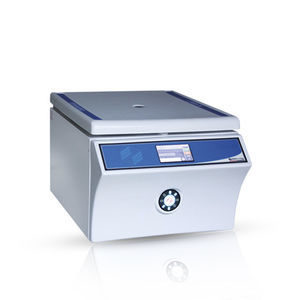

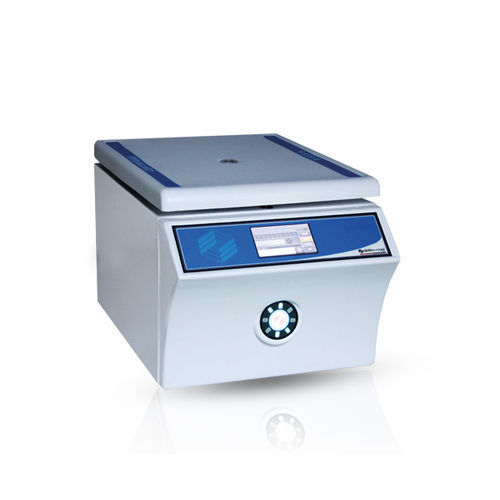

Laboratory centrifuge M 815 A

for biologyclinicalfor molecular biology

Overview The Elektro-mag M 815 A swing-out laboratory centrifuge features a full swing-out rotor, brushless maintenance-free motor and a wide-angle 4.3″ touchscreen RCF/speed display. It is designed to deliver higher centrifugation forces and efficient separation while allowing processing of tubes with different volumes using interchangeable tube nests.

Technical Data Capacity - 8 x 15 ml
Rotor Type - Full swing-out
Speed Control - PID digital microprocessor control
Control Panel - Speed, RCF & Timer
Max. Speed - 5000 rpm
Max. RCF - 4480 x g
Speed Setting Increment - 10 rpm
Speed Setting Range - 500-5000 rpm
Timer Start - When the set speed is achieved
Time Interval - 1-99 min
Continuous Running Mode - Available
Setting Centrifugal Force - Available
Short Running Period - Via pulse button
Number of Programs - 10
Fuse - 6 A
Power Rating - 350 W
Safety - Lid safety switch
Lid Lock - Available (prevents opening during operation)
Speed Display - Available
Rotor Material - Asetal resin
Motor Type - Brushless / maintenance-free motor
Tube Nesting Material (Gode) - ABS (hard plastic)
Outer Case Material - Carbon steel with electrostatic powder paint & ABS
Casing Material - Stainless steel
Power Supply - AC 190-240 V / 50-60 Hz
Dimensions (W×D×H) - 37 x 55 x 34 cm
Net Weight - 22 kg
Gross Weight - 24 kg

Product Information The Elektro-mag M 815 A belongs to the range of full swing-out rotor centrifuges. Swing-out rotors enable higher effective centrifugal force and more efficient separation at comparable speeds. The unit offers 10 programmable slots and a PID control for precise speed regulation between 500 rpm and 5000 rpm. Maximum centrifugal force reaches 4480 x g. Built-in program options include timed start when set speed is reached, interval timing, pulse (short-run) mode, and acceleration/deceleration control to support reproducible processes and precise results.

Safety & Construction The centrifuge is equipped with a lid safety switch and a lid-lock mechanism that prevents opening during operation. The outer housing is carbon steel with electrostatic powder coating combined with ABS components; internal casing is stainless steel for durability and easy cleaning.

Applications Laboratory centrifuges are used in academic, clinical and research laboratories for purification and separation tasks: cells, organelles, viruses, proteins and nucleic acids. Typical applications include blood processing, cell biology and molecular analysis workflows.

Advantages

• Adaptable rotor and tube nest options for different workflows
• Competitive initial investment
• Multiple technical options and programmable control for reproducibility
• User-friendly 4.3″ touchscreen and preset programs
• Integrated safety systems: lid safety switch and lid lock

Technical specifications

• Capacity: 8 x 15 ml
• Rotor Type: Full swing-out
• Speed Control: PID digital microprocessor control
• Control Panel: Speed, RCF & Timer
• Max. Speed: 5000 rpm
• Max. RCF: 4480 x g
• Speed Setting Increment: 10 rpm
• Speed Setting Range: 500-5000 rpm
• Timer Start: When the set speed is achieved
• Time Interval: 1-99 min
• Continuous Running Mode: Available
• Setting Centrifugal Force: Available
• Short Running Period: Via pulse button
• Number of Programs: 10
• Fuse: 6 A
• Power Rating: 350 W
• Safety: Lid safety switch
• Lid Lock: Prevents opening during operation
• Speed Display: Available
• Rotor Material: Asetal resin
• Motor Type: Brushless / maintenance-free motor
• Tube Nesting Material: ABS (hard plastic)
• Outer Case Material: Carbon steel with electrostatic powder paint & ABS
• Casing Material: Stainless steel
• Power Supply: AC 190-240 V / 50-60 Hz
• Dimensions (W×D×H): 37 x 55 x 34 cm
• Net Weight: 22 kg
• Gross Weight: 24 kg
