Laboratory centrifuge M 4808 P

clinicalfor researchfor sample preparation

Product Name

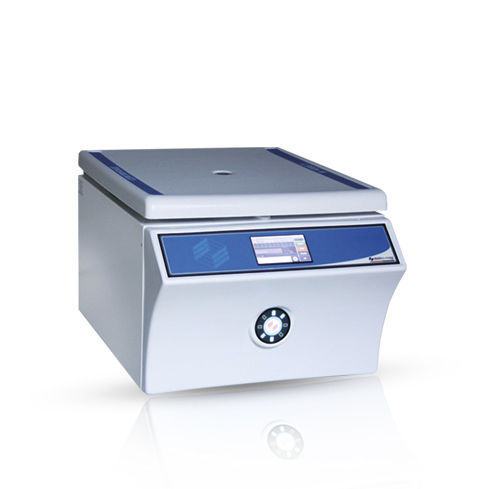

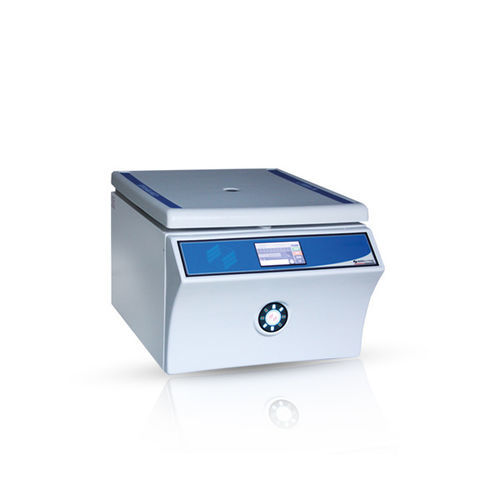

Elektro-mag M 4808 P laboratory centrifuge with full swing-out rotor and 4.3" touchscreen RCF display.

Overview
The M 4808 P is a swing-out rotor laboratory centrifuge engineered for effective separation at high relative centrifugal forces. Swing-out rotors provide superior separation efficiency at comparable speeds versus fixed-angle rotors. The unit accepts interchangeable tube nestings to handle multiple tube formats and volumes.

Key Features

• Full swing-out rotor design
• Maintenance-free brushless motor
• 4.3" touchscreen RCF digital display
• Interchangeable tube nestings for various tube volumes
• Safety functions including lid lock and anti-open interlock during operation
• Electrostatic powder-coated steel casing with ABS elements

Applications
Used for density-based separation in academic, clinical and research laboratories. Typical sample types include blood, cells, subcellular organelles, viruses, proteins and nucleic acids for tasks such as purification, fractionation and sample preparation.

Advantages

• Flexible configuration to match diverse process requirements
• Competitive initial investment cost
• Technical reliability and industrial-grade construction
• User-friendly operation via touchscreen and programmable methods
• Safe operation with lid lock and electrical interlocks

Technical Data

• Model: M 4808 P
• Capacity: 16 x 15 ml
• Optional tube nesting: 4 x 50 ml / 4 x 100 ml
• Max. speed: 5000 rpm
• Max. RCF: 4480 x g
• Speed setting range: 500–5000 rpm
• Acceleration & deceleration time: 20–150 s
• Timer: 1–99 min
• Continuous running: available
• Centrifugal force setting: available
• Short run (pulse): via pulse button
• Program memory: 10 programs
• Fuse: 6 A
• Power rating: 350 W
• Motor type: maintenance-free brushless motor
• Rotor material: steel
• Tube nesting material: acetal resin
• Casing material: C steel with electrostatic powder paint + ABS
• Inner chamber material: stainless steel
• Power supply: AC 190–240 V, 50–60 Hz
• Dimensions (WxDxH): 44 x 54 x 48 cm
• Net weight: 27 kg
• Gross weight: 30 kg

Product Information
The M 4808 P includes built-in programs and menu options such as start time, interval time, short-run mode, and acceleration/deceleration control for reproducible processes. A PID speed controller enables fine adjustment between 500 and 5000 rpm, delivering up to 4480 x g. Short pulse operation and 10 programmable memory slots support routine workflows. The electrostatic powder-coated steel housing and stainless inner chamber contribute to long-term durability.

Technical specifications

• Model: M 4808 P
• Capacity variants: 16 x 15 ml; optional nests for 4 x 50 ml and 4 x 100 ml
• Speed range: 500–5000 rpm
• Maximum RCF: 4480 x g
• Timer range: 1–99 min
• Acceleration/deceleration: 20–150 s
• Programs: 10
• Power: 350 W, Fuse 6 A
• Supply: AC 190–240 V, 50–60 Hz
• Dimensions: 44 x 54 x 48 cm
• Net/Gross weight: 27 / 30 kg
