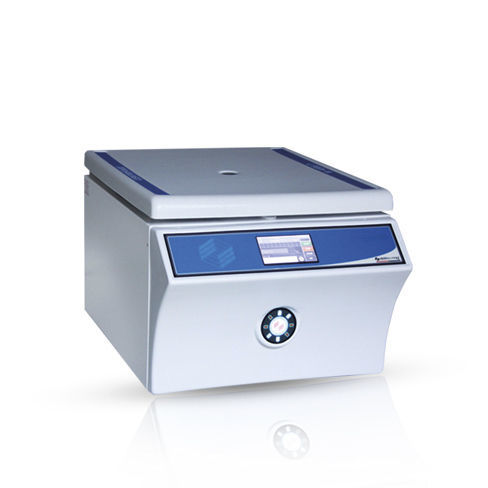

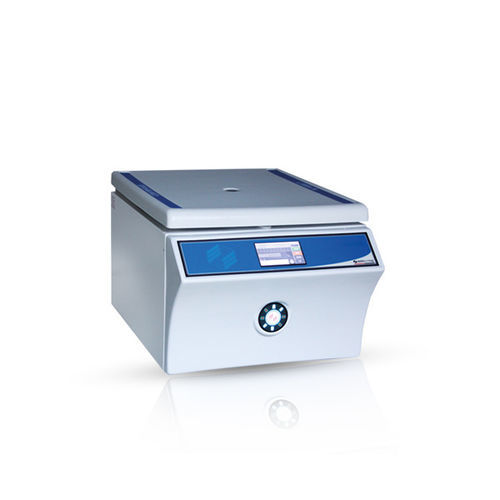

Laboratory centrifuge M 4815 P

for biologyclinicalfor research

Product Overview
The Elektro-mag M 4815 P swing-out laboratory centrifuge is a full swing-out rotor unit designed for controlled, reproducible separations in clinical and research laboratories. It integrates a maintenance-free brushless motor, a 4.3" touchscreen RCF display with PID control, and programmable cycles for processing blood, cells and biological samples.

Key Features

• Full swing-out rotor accommodating interchangeable tube nestings for multiple tube sizes.
• Maintenance-free brushless motor for extended runtime and low upkeep.
• 4.3" wide-angle touchscreen with PID control and 10 programmable memory slots for repeatable protocols.
• Flexible program modes: start time, interval time, pulse operation, adjustable acceleration and deceleration.
• Safety interlocks including lid lock to prevent opening during operation.
• Durable construction with electrostatically painted C-steel casing, ABS components and stainless steel inner chamber.

Technical Data

• Capacity: 48 x 10 ml
• Optional tube nestings: 4 x 50 ml, 4 x 100 ml
• Max. speed: 5000 rpm
• Max. RCF: 4480 x g
• Speed range: 500–5000 rpm
• Acceleration/deceleration time: 20–150 sec
• Timer: 1–99 min
• Continuous running: Available
• Short/run pulse: Via pulse button
• Program memory: 10 programs
• Fuse: 6 A
• Power rating: 350 W
• Power supply: AC 190–240 V / 50–60 Hz
• Dimensions (WxDxH): 44 x 54 x 48 cm
• Net weight: 27 kg
• Gross weight: 30 kg

Applications
Suitable for clinical, hospital and research laboratory workflows, including blood processing, cell separation, preparation of subcellular fractions, viral or protein/nucleic acid sample preparation where density-based separation is required.

Advantages / Additional Notes

• Swing-out rotor geometry delivers higher effective separation for tubes across volumes compared with comparable fixed-angle designs.
• Interchangeable tube carriers allow processing of multiple tube formats in a single run (standard 48 x 10 ml; optional 4 x 50 ml or 4 x 100 ml).
• Programmable memory and PID control support protocol reproducibility and safe operation in diagnostic and research settings.
• Designed for straightforward maintenance and safe use with clear controls and safety interlocks.

Technical specifications

• Model: M 4815 P
• Brand: Elektro-mag
• Rotor material: Steel
• Motor type: Maintenance-free brushless motor
• Tube nesting material: Acetal resin
• Casing material: C-steel with electrostatic powder paint + ABS
• Inner chamber: Stainless steel
