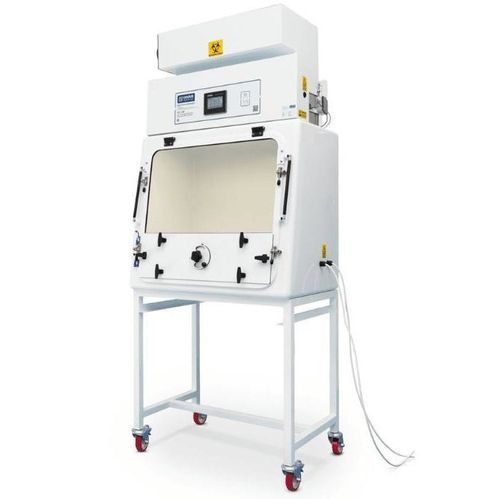

Class I microbiological safety cabinet Class 1 Connect

microbiologylaboratoryfor biocontainment

Overview
The Class 1 Connect biosafety cabinet provides operator protection against biological agents up to ACDP Hazard Group 3. Designed for laboratories performing manipulations through the front aperture, the cabinet achieves protection by controlled inward airflow and efficient exhaust filtration. The Siemens touchscreen HMI enables local and remote access and can be integrated with a Building Management System (BMS).

The Protection

• Prevents escape of airborne particulate contamination via controlled inward airflow through the front aperture and filtration of exhaust air
• Available in recirculating or ducted exhaust configurations
• Optional recirculating Formonia fumigation system for in-situ decontamination
• Fully compliant with BS EN 12469:2000
• Multiple sizes, configurations and fumigation options to suit laboratory requirements
• Designed for easy cleaning and maintenance
• Simple installation suitable for temporary locations

The Controls
The Siemens Unified Panel HMI provides a touchscreen interface and BMS integration capability. The cabinet is controlled by a Siemens G2 PLC with encrypted communications for cyber security.

• User activity logs
• Status checks and digital airflow display
• Low & high airflow latched alarms (audible and visual)
• Visor open alarm
• Filter soil pressure switch / indicator
• Hours run counter and alarm test function
• Sensor readings (where sensors are included)

Key Features

• Compact stainless-steel construction with white polyester coating and polished stainless-steel work surface
• Smooth internal and external surfaces with radiused internal corners for effective cleaning
• High retention efficiency for operator protection
• Integral double HEPA filtration to H14 on recirculating models
• Replaceable prefilter to extend HEPA life
• Exhaust fan box with integral fans
• Hinged toughened glass front visor supported by gas struts
• Self-sealing lightweight night door/closure panel with interlock for safe fumigation
• Comprehensive alarms and interlocks for safety
• Membrane control panel designed for easy cleaning, with clear alarms and indicators
• Automatic speed-controlled fan for filter life optimisation
• Front access for fast set-up and maintenance
• Built-in BMS connectivity and auto-damper signal outputs

Technical specifications

• Protection rating: operator protection up to ACDP Hazard Group 3
• Standards: compliant with BS EN 12469:2000
• Construction: stainless steel outer case and work base with white polyester coating and polished stainless-steel work surface
• Internal finishes: smooth surfaces and radiused internal corners for cleaning
• Filtration: integral double HEPA to H14 on recirculating models; replaceable prefilter
• Exhaust: recirculating or ducted exhaust options; exhaust fan box with integral fans
• Fumigation: Formonia recirculating fumigation system option; self-sealing night door with interlock
• Visor: hinged toughened glass front visor with gas-strut support
• Controls: Siemens Unified Panel HMI and Siemens G2 PLC with encrypted communications; BMS connectivity
• Alarms & indicators: airflow, visor-open, filter soil, hours run counter, latched airflow alarms (audible/visual), alarm test
• Maintenance: front access for fast service; automatic speed-controlled fan for filter life optimisation
