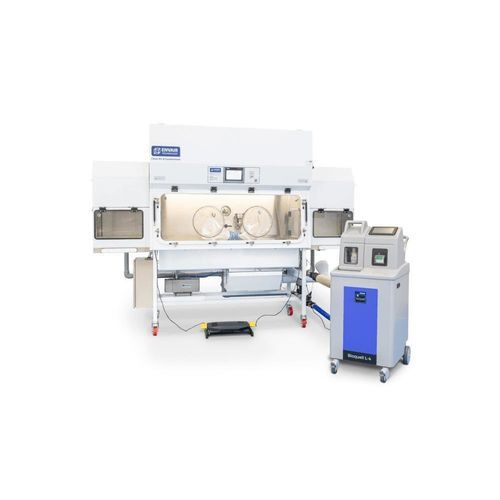

Pharmaceutical laboratory isolator CDC F ABD

containmentfor researchfor hospitals

Product overview
The CDC F ABD is a negative-pressure pharmaceutical gassing isolator designed to protect operators from exposure to cytotoxic drugs while preventing microbiological contamination of products. It features an integrated, automated and validated Vaporised Hydrogen Peroxide (VHP) bio-decontamination cycle delivering a 6-log sporicidal reduction. The range is available in two- or four-glove configurations and in wider or narrower working-area layouts, with options for additional exhaust fans and filters. Units are engineered for straightforward installation, operation and maintenance.

Key features

• Integrated Vaporised Hydrogen Peroxide (VHP) decontamination system capable of a 6-log sporicidal kill
• Closed-loop configuration requiring no external ducting or room modifications
• Fully automated lids and valves, including automated pressure decay testing
• All internal surfaces in polished 316L stainless steel for resistance to VHP
• Siemens TP700 Comfort HMI panel for control and enhanced connectivity

Applications

• Safe handling and preparation of cytotoxic drugs in hospital pharmacies and pharmaceutical manufacturing
• Research and laboratory environments requiring containment and microbiological protection

Technical specifications

• Model / series: CDC F ABD
• Containment: Negative-pressure isolator for cytotoxic handling
• Bio-decontamination: Automated, validated VHP system providing 6-log sporicidal kill
• Configuration: Closed loop (no external ducting required)
• Automation: Automated lids and valves; automated pressure decay testing
• Internal finish: Polished 316L stainless steel
• Control/interface: Siemens TP700 Comfort HMI
• Glove options: Two-glove or four-glove configurations
• Work area: Available in wide or narrower working-area layouts
• Air management: Options for additional exhaust fans and filters
