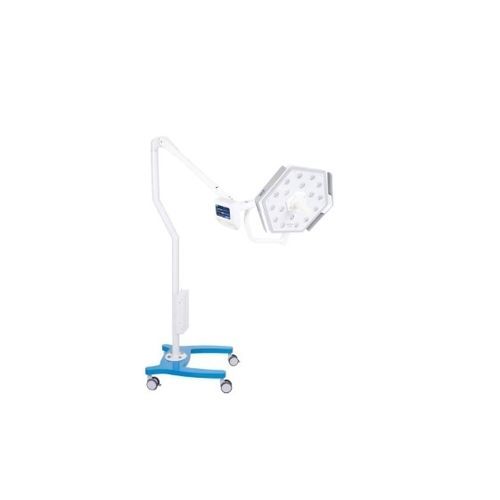

Mobile surgical light Constella C

LEDfor operating rooms230V / 50Hz

Overview
Mobile operating-theatre LED light engineered for flexible use in operating theatres and procedure rooms. Provides high-intensity, uniform, shadow‑free illumination with excellent colour fidelity and smooth positioning on a stable castor base.

Key highlights

• Compact mobile dome for comprehensive coverage
• 160,000 lux maximum central illumination at 1 m
• Variable focus modes: Standard, Narrow, Deep Cavity, Endo
• Adjustable correlated colour temperature (CCT) from 3500 K to 5500 K
• Colour Rendering Index (CRI) 96 (boost up to 99)
• LED service life: 60,000+ hours
• Light head diameter: 520 mm

Specifications

• Mount: Mobile
• Domes: C
• Light head diameter: 520 mm
• Max illumination at 1 m: 160,000 lux
• Power consumption: 45 W
• No. of LEDs: 18
• CRI: 96 (boost up to 99)
• CCT: 3500 K – 5500 K
• Light field diameter at 1 m: 150 mm – 300 mm
• Depth of illumination at 20% (L1+L2): 1100 mm
• Depth of illumination at 60% (L1+L2): 700 mm
• Focus mode: Variable (Standard, Narrow, Deep Cavity, Endo)
• Dimming range: 0 – 100 %
• LED service life: 60,000 hours
• Supply voltage: 230 V ±10%, 50 Hz ±5%
• Power supply unit: 24 V DC ±10%, 4.2 A max
• Operating temperature: 5°C – 40°C
• Humidity: 10% – 90%

Additional notes

• The specifications above apply to single, double, triple and mobile versions of the Constella series.
• All values conform to IEC 60601-2-41 and are subject to a general industrial tolerance of ±5%.
• In accordance with IEC 60601-2-41, the maximum illuminance must not exceed 160,000 lux.
• Camera light head power consumption: approximately 6 W (additional).
• Focus mode: Variable = Standard, Narrow, Deep Cavity, Endo.

Technical specifications

• Mount: Mobile
• Domes: C
• Light head diameter: 520 mm
• Max central illumination at 1 m: 160,000 lux
• Power consumption (light head): 45 W
• No. of LEDs: 18
• CRI: 96 (boost up to 99)
• CCT range: 3500 K – 5500 K
• Light field diameter at 1 m: 150–300 mm
• Depth of illumination (L1+L2) at 20%: 1100 mm
• Depth of illumination (L1+L2) at 60%: 700 mm
• Dimming: 0–100 %
• LED life: 60,000 hours
• Supply voltage: 230 V ±10%, 50 Hz ±5%
• PSU: 24 V DC ±10%, 4.2 A max
• Operating temperature: 5°C–40°C
• Relative humidity: 10%–90%
