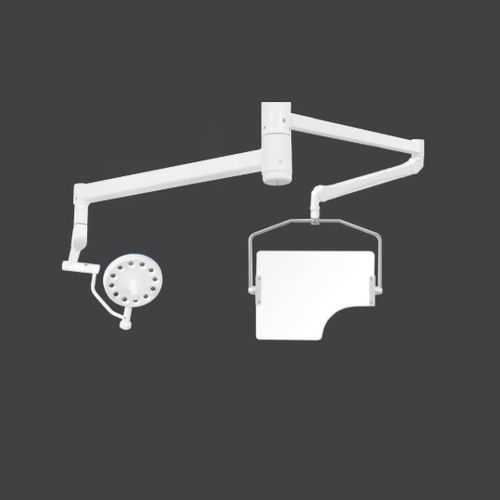

Ceiling-mounted surgical light Luminox 300

LEDfor operating rooms2-arm

Product overview
Ceiling-mounted single Luminox 300 dome designed for operating theatres and procedure rooms. Provides high-intensity, uniform and glare-free illumination with excellent colour accuracy for surgical and procedural tasks. Advanced optics ensure consistent brightness distribution, effective shadow control and clear tissue differentiation across the working field.

Key highlights

• Single ceiling dome for focused field coverage
• Luminox 300 compact head
• 100,000 lux maximum central illumination at 1 m
• Fixed focus with CRI > 90
• LED service life: 60,000+ hours

Specifications (Luminox 300)
Max. central illumination at 1 m: 100,000 lux
Light field diameter at 1 m (d10): 250 mm ± 10%
Light head diameter: 300 mm
Depth of illumination at 20% (L1+L2): 1300 mm
Depth of illumination at 60% (L1+L2): 800 mm
Correlated Color Temperature (CCT): 6500 K ± 500 K
Color Rendering Index (CRI): > 90
Power consumption: < 25 W
Focus mode: Fixed
Dimming range: 0–100%
No. of LEDs: 12
LED service life: 60,000 hours
Supply voltage: 230 V ±10%, 50 Hz ±5%
Power supply unit: 24 V DC ±10%, 4.2 A max
Operating temperature: 5°C–40°C
Humidity: 10%–90%

Additional information

• Specifications apply to wall, single, double, triple and mobile versions of the Luminox series where relevant.
• All values conform to IEC 60601-2-41 and are subject to a general industrial tolerance ±5%.
• In accordance with IEC 60601-2-41, maximum illuminance must not exceed 160,000 lux.
• Focus mode: Variable (Narrow/Broad) is available on Luminox 500; Luminox 300 uses fixed focus.
• Custom development available for programme-specific mounting and interface requirements.

Technical specifications

• Model: Luminox 300 (configured head)
• Maximum central illuminance: 100,000 lux at 1 m
• Light field diameter (d10) at 1 m: 250 mm ±10%
• Light head diameter: 300 mm
• Depth of illumination (20%): 1300 mm
• Depth of illumination (60%): 800 mm
• CCT: 6500 K ±500 K
• CRI: > 90
• Power consumption: < 25 W
• Dimming: 0–100%
• No. of LEDs: 12
• LED service life: 60,000 hours
• Supply voltage: 230 V ±10%, 50 Hz ±5%
• Power supply: 24 V DC ±10%, 4.2 A max
• Operating temperature: 5°C–40°C
• Humidity range: 10%–90%
