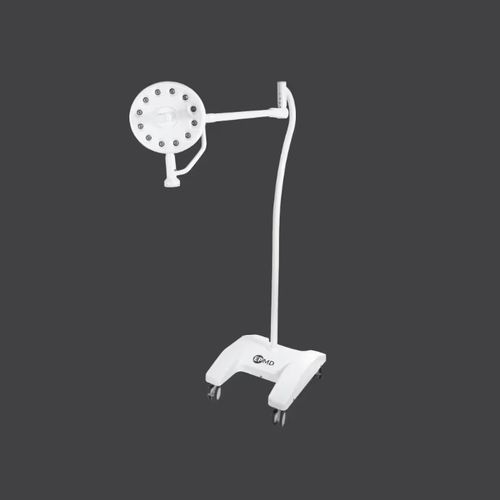

Mobile surgical light Luminox 300

LEDfor operating rooms230V / 50Hz

Product overview
The Luminox 300 mobile dome is a castor-mounted surgical light designed for procedure rooms and shared clinical spaces. It provides high-intensity, uniform illumination with excellent color fidelity for demanding clinical tasks. The compact 300 mm head and smooth-rolling castor base enable rapid repositioning and precise alignment over the treatment field.

Key highlights

• Mobile dome for broad surgical field coverage
• Luminox 300 compact head (300 mm)
• Max. central illumination at 1 m: 100,000 lux
• Fixed focus with Correlated Color Temperature 6500 K ± 500 K
• LED service life: 60,000+ hours
• Smooth-rolling castor wheelbase for easy mobility and positioning

Specifications (Luminox 300)
Max. central illumination at 1 m: 100,000 lux
Light field diameter at 1 m (d10): 250 mm ± 10%
Light head diameter: 300 mm
Depth of illumination at 20% (L1+L2): 1300 mm
Depth of illumination at 60% (L1+L2): 800 mm
Correlated Color Temperature (CCT): 6500 K ± 500 K
Color Rendering Index (CRI): > 90
Power consumption: < 25 W
Focus mode: Fixed
Dimming range: 0 – 100 %
No. of LEDs: 12
LED service life: 60,000 hours
Supply voltage: 230 V ±10%, 50 Hz ±5%
Power supply unit: 24 V DC ±10%, 4.2 A max
Operating temperature: 5°C – 40°C
Humidity: 10% – 90%

Additional information

• Specifications apply to wall, single, double, triple and mobile configurations of the Luminox series.
• All values conform to IEC 60601-2-41 and are subject to a general industrial tolerance of ± 5%.
• Per IEC 60601-2-41, maximum illuminance must not exceed 160,000 lux.
• Focus modes: Variable focus (narrow/broad) is available on Luminox 500; Luminox 300 uses fixed focus.
• Custom development available for programme-specific mounting and interface requirements.

Technical features

• Model: Luminox 300 (compact head)
• Configuration: Mobile dome, castor-mounted
• Max. central illumination (1 m): 100,000 lux
• Light field diameter (d10 at 1 m): 250 mm ± 10%
• Light head diameter: 300 mm
• Depth of illumination (20%): 1300 mm
• Depth of illumination (60%): 800 mm
• CCT: 6500 K ± 500 K
• CRI: > 90
• Power consumption: < 25 W
• Focus mode: Fixed
• Dimming range: 0–100%
• Number of LEDs: 12
• LED service life: 60,000 hours
• Supply voltage: 230 V ±10%, 50 Hz ±5%
• Power supply unit: 24 V DC ±10%, 4.2 A max
• Operating temperature: 5°C–40°C
• Humidity range: 10%–90%
• Mobility: Smooth-rolling castor wheelbase for effortless movement and precise positioning
