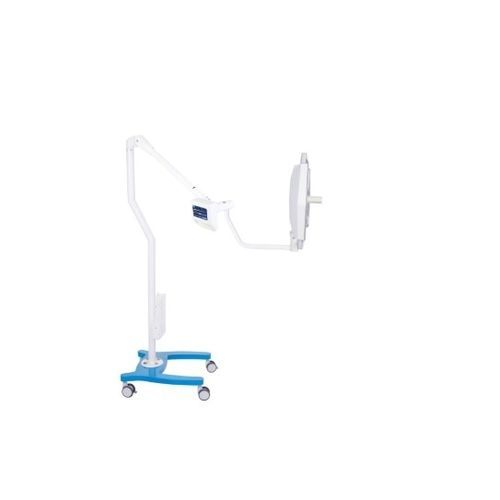

Mobile surgical light Constella D

LEDfor operating rooms230V / 50Hz

Overview
Large-dome mobile operating theatre (OT) LED light designed for deeper cavities and broader surgical fields. The Constella D Mobile provides high-intensity, uniform and shadow‑free illumination with excellent colour accuracy. Mounted on a stable, smooth-rolling castor base for easy repositioning and precise alignment across operating areas. Variable focus modes and adjustable correlated colour temperature support different procedures and imaging needs.

Key highlights

• Large mobile dome for comprehensive coverage
• 160,000 lux maximum central illumination at 1 m
• Variable focus modes: Standard, Narrow, Deep Cavity and Endo
• Adjustable CCT from 3500 K to 5500 K
• Colour Rendering Index (CRI) 96 (boost up to 99)
• LED service life: 60,000+ hours

Specifications (table)

• Model — Constella D Mobile
• Mount — Mobile
• Domes — D
• Light head diameter — 720 mm
• Max illumination at 1 m — 160,000 lux
• Power consumption — 55 W
• No. of LEDs — 30
• CRI — 96 (boost up to 99)
• CCT — 3500 K - 5500 K
• Light field diameter at 1 m — 150 mm - 300 mm
• Depth of illumination at 20% (L1+L2) — 1200 mm
• Depth of illumination at 60% (L1+L2) — 650 mm
• Focus mode — Variable (Standard, Narrow, Deep Cavity, Endo)
• Dimming range — 0 – 100 %
• LED service life — 60,000 hours
• Supply voltage — 230 V ±10%, 50 Hz ±5%
• Power supply unit — 24 V DC ±10%, 4.2 A max
• Operating temperature — 5°C - 40°C
• Humidity — 10% - 90%

Notes

• The specifications above apply to single, double, triple and mobile versions of the Constella series.
• All values conform to IEC 60601-2-41 and are subject to an industrial tolerance of ±5%.
• In accordance with IEC 60601-2-41, maximum illuminance must not exceed 160,000 lux.
• Camera light head power consumption: approx. 6 W (optional, additional).
• Focus mode: Variable = Standard, Narrow, Deep Cavity and Endo.

Technical specifications

• Model: Constella D Mobile
• Mount: Mobile
• Domes: D
• Light head diameter: 720 mm
• Max illumination at 1 m: 160,000 lux
• Light field diameter at 1 m: 150 mm - 300 mm
• Depth of illumination (20%): 1200 mm
• Depth of illumination (60%): 650 mm
• Power consumption: 55 W (camera head ~6 W extra)
• No. of LEDs: 30
• CRI: 96 (boost up to 99)
• CCT: 3500 K - 5500 K
• Dimming range: 0 – 100%
• LED service life: 60,000 hours
• Supply voltage: 230 V ±10%, 50 Hz ±5%
• Power supply unit: 24 V DC ±10%, 4.2 A max
• Operating temperature: 5°C - 40°C
• Humidity: 10% - 90%
