Mobile surgical light Luminox 300

LEDminor surgeryfor operating rooms

Overview

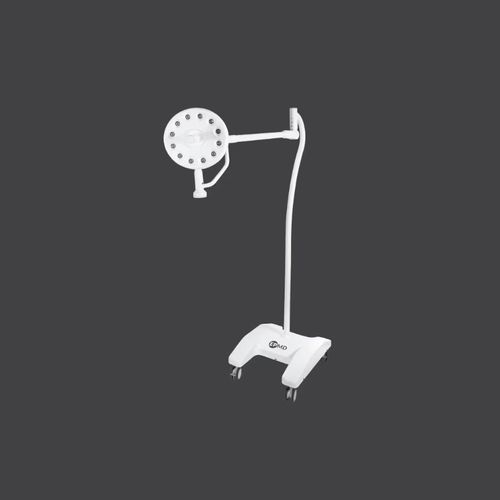

The castor-mounted Luminox 300 mobile dome provides high-intensity, uniform illumination for procedure rooms and shared clinical spaces. Built around a compact 300 mm head, the system offers precise positioning via a smooth-rolling castor wheelbase and a fixed-focus optical design optimized for medical procedures. Designed for consistent colour rendering and long LED service life, the Luminox 300 is suitable for operating theatres, minor procedure rooms and flexible clinical environments.

Key highlights

• Mobile dome for comprehensive light-field coverage
• Luminox 300 compact head (300 mm)
• Max. central illumination: 100,000 lux at 1 m
• Fixed focus, Correlated Color Temperature 6500 K ± 500 K
• Color Rendering Index (CRI) > 90 for accurate tissue colour
• LED service life > 60,000 hours
• Smooth-rolling castor wheelbase for easy repositioning

Specifications
Max. Central illumination at 1 m: 100,000 lux
Light field diameter at 1 m (d10): 250 mm ± 10%
Light head diameter: 300 mm
Depth of illumination at 20% (L1+L2): 1300 mm
Depth of illumination at 60% (L1+L2): 800 mm
Correlated Color Temperature (CCT): 6500 K ± 500 K
Color Rendering Index (CRI): > 90
Power consumption: < 25 W
Focus Mode: Fixed
Dimming Range: 0 – 100 %
No. of LEDs: 12
LED Service Life: 60,000 hours
Supply Voltage: 230 V ±10%, 50 Hz ±5%
Power Supply Unit: 24 V DC ±10%, 4.2 A max
Operating Temperature: 5°C - 40°C
Humidity: 10% - 90%

Notes

• The specifications above apply to wall, single and mobile versions of Luminox 300.
• All values conform to IEC 60601-2-41 and are subject to a general industrial tolerance ± 5%.
• Luminox 300 uses fixed focus.
• Custom development available for programme-specific mount and interface requirements.

Technical specifications

• Model: Luminox 300
• Max. Central illumination at 1 m: 100,000 lux
• Light field diameter at 1 m (d10): 250 mm ± 10%
• Light head diameter: 300 mm
• Depth of illumination at 20% (L1+L2): 1300 mm
• Depth of illumination at 60% (L1+L2): 800 mm
• CCT: 6500 K ± 500 K
• CRI: > 90
• Power consumption: < 25 W
• Focus Mode: Fixed
• Dimming Range: 0 – 100 %
• No. of LEDs: 12
• LED Service Life: 60,000 hours
• Supply Voltage: 230 V ±10%, 50 Hz ±5%
• Power Supply Unit: 24 V DC ±10%, 4.2 A max
• Operating Temperature: 5°C - 40°C
• Humidity: 10% - 90%
