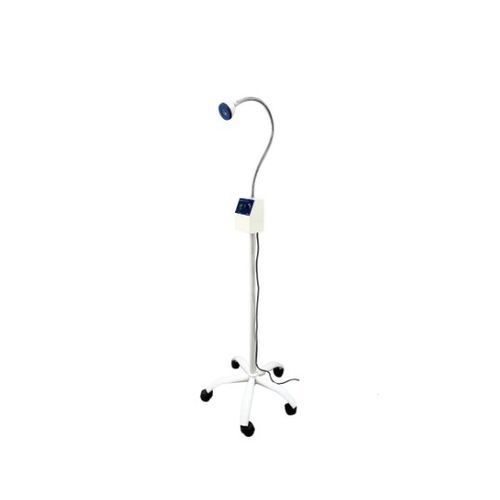

Medical examination lamp Luminox Brighto Mini

clinicalminor precision surgerydiagnostic

Overview
The Luminox Brighto Mini medical spotlight provides compact, focused illumination for clinical examinations and minor procedures. It delivers high illuminance with accurate colour rendering in a portable form fitted on a mobile castor stand for easy repositioning.

What Luminox Brighto Mini delivers

• Compact medical spotlight with controllable beam and high colour fidelity (CRI > 90), mounted on a mobile castor stand for examination and treatment.
• Bright, concentrated illumination for targeted examination areas, bedside interventions and minor clinical procedures.
• Portable, lightweight design and smooth-rolling base for rapid movement between rooms and bays.

Performance and clarity
Precise beam control and 0–100% dimming allow adaptation to procedural needs and patient comfort. The 5 W high-power LED provides stable light output across operating distances of 300–750 mm, supporting accurate visual assessment and consistent colour reproduction.

Key features

• High-power white LED, 5 W, with 0–100% dimming.
• Max illuminance 20,000–50,000 lux in the central field.
• True-colour rendering (CRI > 90) and nominal CCT 5500 K (customizable).
• 200 mm light field diameter optimized for focused examinations.
• Lightweight, portable form factor on a stable castor stand.
• LED lifetime > 50,000 hours for low maintenance and energy efficiency.

In detail

• Operating distance: 300–750 mm with effective, targeted illumination.
• Focused light field diameter: 200 mm for accurate colour and detail.
• Adjustable correlated colour temperature options; standard 5500 K.
• Stable mobile base for shared clinical spaces and bedside use.

Product specifications
Type — High power white LED
Max Illuminance — 20,000 lx – 50,000 lx
Dimming Range — 0 – 100%
Light Field Diameter — 200 mm
Operating Distance — 300 mm – 750 mm
CCT — 5500 K (customizable)
Color Quality — True (CRI > 90)
Power — 5 W
LED Life — 50,000 h
Operating Temperature — 10°C - 40°C
Humidity — 10% - 90%
Supply Voltage — 90V – 300V AC

Technical specifications

• Type: High power white LED
• Max Illuminance: 20,000–50,000 lux
• Light Field Diameter: 200 mm
• Operating Distance: 300–750 mm
• CCT: 5500 K (customizable)
• Color Quality: CRI > 90
• Dimming Range: 0–100%
• Power Consumption: 5 W
• LED Life: 50,000 hours
• Operating Temperature: 10°C – 40°C
• Humidity Range: 10% – 90%
• Supply Voltage: 90V – 300V AC
• Form Factor: Lightweight portable spotlight on mobile castor stand
