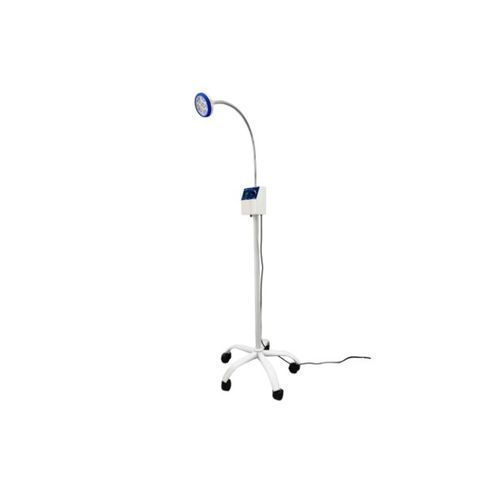

Medical examination lamp Luminox Brighto

for minor surgeryclinicaldiagnostic

Overview
The definitive examination light engineered for precision care with bright, focused illumination for outpatient and ward use. Lightweight, modern form factor combining portability with an elegant, space-efficient design suited for clinical environments.

Performance summary
High-performance LED examination light delivering 40,000–70,000 lux central illumination across operating depths of 700–1200 mm, a focused 220 mm light field for clinical assessments and minor procedures, 6500 K daylight CCT (customizable), and high colour rendering with CRI > 90. Designed with a stable mobile castor stand for effortless movement between examination bays and procedure areas.

Key features

• Max illuminance: 40,000–70,000 lux central illumination at various depths
• Focused clinical spot: 220 mm light field for precise visibility during assessments and minor procedures
• CCT: 6500 K daylight (customizable)
• High colour rendering: CRI > 90 for true-to-life colour across the examination field
• Long-life LEDs: 50,000+ hour LED life for high-utilisation settings
• High power white LED with 0–100% dimming range for procedure-specific intensity control
• Power draw: 15 W
• Operating distance: 700 mm – 1200 mm
• Compact, portable design with smooth-rolling castor base for effortless positioning

Applications
Suitable for outpatient assessments, examination rooms, clinics and ward-side minor procedures where accurate tissue visualisation and flexible positioning are required.

Caractéristiques / spécifications techniques

• Type: High power white LED
• Max Illuminance: 40,000 lx – 70,000 lx
• Dimming Range: 0 – 100%
• Light Field Diameter: 220 mm
• Operating Distance: 700 mm – 1200 mm
• CCT: 6500 K (customizable)
• Color Quality: True (CRI > 90)
• Power: 15 W
• LED Life: 50,000 h
• Operating Temperature: 10°C - 40°C
• Humidity: 10% - 90%
• Supply Voltage: 90V – 300V AC
