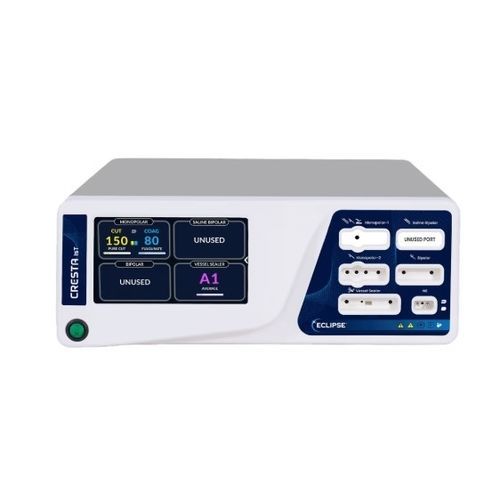

Monopolar cutting electrosurgical unit Cresta IsT

bipolar cuttingRF

Overview
The Cresta IsT is an advanced RF electrosurgical generator platform designed for precision electrosurgery. It uses a split-port configuration for dedicated Bipolar and Vessel Sealer outputs and supports monopolar, bipolar and vessel sealing modes. Integrated technologies (ContactIQ, SureBind, SafeZ, TURiCUT) provide real-time tissue sensing, adaptive energy delivery and system diagnostics to support consistent clinical results.

Key highlights

• Vessel sealing capability up to 7 mm
• Underwater monopolar cutting capability
• Return Electrode Monitoring (REM)
• RF Cut and multiple Cut/Coag modes
• Consistent tissue effect with real-time sensing
• 7-inch intuitive touchscreen control
• High-performance ARM32 microcontroller (sampling rate >10,000/sec)
• Split-port outputs for Bipolar and Vessel Sealer
• Program manager and self-diagnosis functions
• Visual and audible warnings

Specifications
Outputs: One Monopolar, One Bipolar, One Vessel Sealer
Port configuration: Split (Bipolar and Vessel Sealer)
Vessel Sealer: Yes
Saline Bipolar: NA
Pure Cut: 300 W
Vessel Sealer (High): 150 W
Vessel seal diameter: up to 7 mm
Display: 7-inch touchscreen
Weight: <10 kg
Dimensions (W x D x H): 410 mm x 160 mm x 480 mm
Input supply voltage & frequency: 230V ± 10%, 50 Hz
Operating temperature range: +10°C to 40°C
Operating relative humidity: 15% to 85% non-condensing
Operating atmospheric pressure: 700 to 1060 millibars
Transport & storage temperature range: -10°C to +60°C
Transport & storage humidity: 15% to 90%
Transport & storage pressure: 500 to 1060 millibars

Power modes
Mode | Max Settings | Vpk-pk | Rated Load | Max Power in Watts | Crest Factor
MONOPOLAR CUT / Pure Cut | 300 | 3100 V | 500 Ω | 300 W | 1.4
MONOPOLAR CUT / Blend 1 | 250 | 3300 V | 500 Ω | 250 W | 2.0
MONOPOLAR CUT / Blend 2 | 200 | 3200 V | 500 Ω | 200 W | 2.3
MONOPOLAR CUT / Blend 3 | 200 | 3600 V | 500 Ω | 200 W | 2.6
MONOPOLAR COAG / Spray | 80 | 6000 V | 300 Ω | 80 W | 6.5
MONOPOLAR COAG / Fulgurate | 120 | 6600 V | 300 Ω | 120 W | 5.0
MONOPOLAR COAG / Desiccate 1 | 150 | 3100 V | 500 Ω | 150 W | 2.0
MONOPOLAR COAG / Desiccate 2 | 150 | 2600 V | 500 Ω | 150 W | 1.8
BIPOLAR / Micro | 80 | 650 V @ 500 Ω | 100 Ω | 80 W | 1.4
BIPOLAR / Macro | 80 | 750 V @ 500 Ω | 100 Ω | 80 W | 1.6
BIPOLAR / Cut | 120 | 800 V @ 500 Ω | 100 Ω | 120 W | 1.4
VESSEL SEALER / Low | L2 | 300 V @ 150 Ω | - | 110 W | 1.4
VESSEL SEALER / Average | A2 | 350 V @ 150 Ω | - | 130 W | 1.4
VESSEL SEALER / High | H2 | 450 V @ 150 Ω | - | 150 W | 1.4

Notes

• The ratings above are maximum ratings.
• All output power values are available within ±20%; peak voltage and crest factors vary accordingly.
• Power can be reduced intraoperatively by selecting appropriate settings.
• Use the lowest power setting that achieves the required surgical effect.
• Vessel Sealer power is modulated during sealing cycles.

Technical specifications

• Model: Cresta IsT
• Outputs: One Monopolar, One Bipolar, One Vessel Sealer
• Port configuration: Split (Bipolar and Vessel Sealer)
• Vessel sealing capability: up to 7 mm (Vessel Sealer present)
• Pure Cut max: 300 W
• Vessel Sealer (High) max: 150 W
• Display: 7-inch touchscreen
• Weight: <10 kg
• Dimensions (W x D x H): 410 mm x 160 mm x 480 mm
• Input supply: 230V ± 10%, 50 Hz
• Operating temperature: +10°C to 40°C
• Operating humidity: 15% to 85% non-condensing
• Transport/storage temperature: -10°C to +60°C
