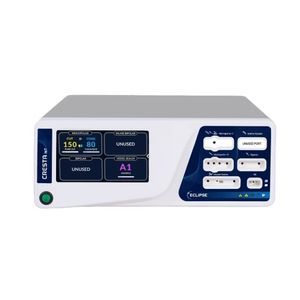

Monopolar cutting electrosurgical unit Cresta Is

bipolar cuttingcoagulationmonopolar coagulation

Overview
The Cresta Is is an electrosurgical generator featuring split‑port wiring to provide dedicated monopolar, bipolar and SureBind vessel sealing functions. It supports reproducible vessel seals up to 7 mm and delivers standard cut and coagulation modalities via a clear 7‑segment LED interface. SafeTis impedance feedback helps control tissue response for both laparoscopic and open procedures.

Key highlights

• Vessel sealer up to 7 mm (SureBind)
• Split port (dedicated bipolar and vessel sealer connectors)

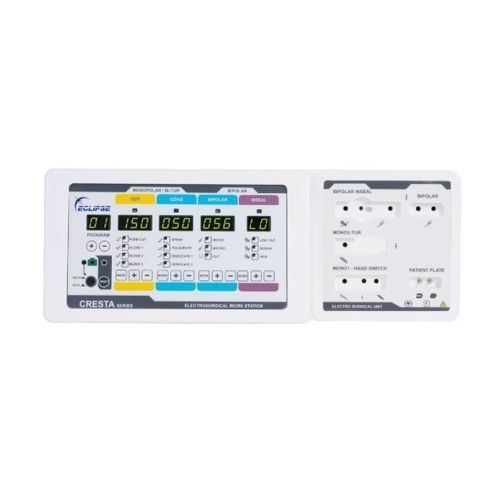

• 7‑segment LED interface
• SafeTis tissue impedance feedback
• Vessel Sealer (High) up to 150 W
• Ordering code LF90122

Technical specifications

• Model: Cresta Is
• Family: Cresta Digital
• Outputs: One monopolar, one bipolar, vessel sealer
• Vessel sealing technology: SureBind (up to 7 mm)
• Display: 7‑segment LED
• Port configuration: Split (bipolar and vessel sealer)
• SafeTis tissue feedback: Yes
• Saline bipolar: N/A
• Vessel Sealer (High): 150 W
• Ordering code: LF90122
• Weight: <10 kg
• Dimensions (W x D x H): 410 mm x 160 mm x 480 mm
• Input supply: 230 V ± 10%, 50 Hz
• Operating temperature: +10 °C to +40 °C
• Operating relative humidity: 15% to 85% non‑condensing
• Operating atmospheric pressure: 700 to 1060 millibars
• Transport & storage temperature: -10 °C to +60 °C
• Transport & storage humidity: 15% to 90%
• Transport & storage pressure: 500 to 1060 millibars

Power modes (selected max settings)

• MONOPOLAR CUT / Pure Cut: Max Setting 300 | Vpk‑pk 3100 V | Rated Load 500 Ω | Max Power 300 W | Crest Factor 1.4
• MONOPOLAR CUT / Blend 1: Max Setting 250 | Vpk‑pk 3300 V | Rated Load 500 Ω | Max Power 250 W | Crest Factor 2.0
• MONOPOLAR COAG / Spray: Max Setting 80 | Vpk‑pk 6000 V | Rated Load 300 Ω | Max Power 80 W | Crest Factor 6.5
• BIPOLAR / Cut: Max Setting 120 | Vpk‑pk 800 V @ 500 Ω | Rated Load 100 Ω | Max Power 120 W | Crest Factor 1.4
• VESSEL SEALER / Low: Max Setting L2 | Vpk‑pk 300 V @ 150 Ω | Max Power 110 W | Crest Factor 1.4
• VESSEL SEALER / High: Max Setting H2 | Vpk‑pk 450 V @ 150 Ω | Max Power 150 W | Crest Factor 1.4

Notes
The values above are maximum ratings. Output power values may vary by ±20%; peak voltage and crest factors change accordingly. Power can be reduced during procedures by selecting lower settings. Always use the lowest power that achieves the required surgical effect. Vessel Sealer power is modulated.
