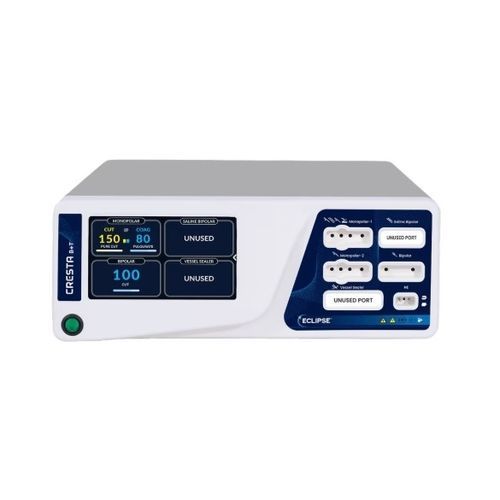

Bipolar cutting electrosurgical unit Cresta B+T

monopolar coagulationcoagulationfulguration

Overview
The CRESTA B+T is an advanced electrosurgical RF generator platform designed for precise tissue effect control in both monopolar and bipolar surgical applications. It integrates ContactIQ, SafeZ and TURiCUT technologies to provide real-time tissue sensing, consistent energy delivery and configurable workflows for a variety of procedures.

Key highlights

• Dual-mode operation: simultaneous support for monopolar and bipolar workflows
• Independent activation and program management for multi-user settings
• Underwater monopolar cutting capability
• Return electrode monitoring (REM) for patient safety
• Multiple cut/coagulation modes including Pure Cut, Blend, Spray and Bipolar Cut
• Consistent tissue effect through real-time Tissue Sensing (ContactIQ)
• Intuitive 7" touchscreen for direct parameter control
• High-performance ARM32 microcontroller (sampling rate >10,000/sec)
• Built-in self-diagnosis and warnings

Technical specifications

• Model: CRESTA B+T
• Manufacturer technologies: ContactIQ, SafeZ, TURiCUT
• Outputs: Two monopolar, one bipolar
• Modes: Dual-mode operation (monopolar & bipolar), multiple monopolar coag/cut/blend modes
• Pure Cut power: 300 W
• Blend 1 power: 250 W
• Spray coagulation power: 80 W
• Bipolar Cut power: 120 W
• Display: 7" touchscreen
• Weight: <10 kg
• Dimensions (W x D x H): 410 mm x 160 mm x 480 mm
• Input supply: 230 V ±10%, 50 Hz
• Operating temperature: +10°C to +40°C
• Operating relative humidity: 15% to 85% non-condensing
• Operating atmospheric pressure: 700 to 1060 millibars
• Transport & storage temperature: -10°C to +60°C
• Transport & storage humidity: 15% to 90%
• Transport & storage pressure: 500 to 1060 millibars

Power modes (summary)

• MONOPOLAR CUT / Pure Cut — Max Settings: 300 — Vpk-pk: 3100 V — Rated Load: 500 Ω — Max Power: 300 W — Crest Factor: 1.4
• MONOPOLAR CUT / Blend 1 — Max Settings: 250 — Vpk-pk: 3300 V — Rated Load: 500 Ω — Max Power: 250 W — Crest Factor: 2.0
• MONOPOLAR CUT / Blend 2 — Max Settings: 200 — Vpk-pk: 3200 V — Rated Load: 500 Ω — Max Power: 200 W — Crest Factor: 2.3
• MONOPOLAR CUT / Blend 3 — Max Settings: 200 — Vpk-pk: 3600 V — Rated Load: 500 Ω — Max Power: 200 W — Crest Factor: 2.6
• MONOPOLAR COAG / Spray — Max Settings: 80 — Vpk-pk: 6000 V — Rated Load: 300 Ω — Max Power: 80 W — Crest Factor: 6.5
• MONOPOLAR COAG / Fulgurate — Max Settings: 120 — Vpk-pk: 6600 V — Rated Load: 300 Ω — Max Power: 120 W — Crest Factor: 5.0
• MONOPOLAR COAG / Desiccate 1 — Max Settings: 150 — Vpk-pk: 3100 V — Rated Load: 500 Ω — Max Power: 150 W — Crest Factor: 2.0
• MONOPOLAR COAG / Desiccate 2 — Max Settings: 150 — Vpk-pk: 2600 V — Rated Load: 500 Ω — Max Power: 150 W — Crest Factor: 1.8
• BIPOLAR / Micro — Max Settings: 80 — Vpk-pk: 650 V @ 500 Ω — Rated Load: 100 Ω — Max Power: 80 W — Crest Factor: 1.4
• BIPOLAR / Macro — Max Settings: 80 — Vpk-pk: 750 V @ 500 Ω — Rated Load: 100 Ω — Max Power: 80 W — Crest Factor: 1.6
• BIPOLAR / Cut — Max Settings: 120 — Vpk-pk: 800 V @ 500 Ω — Rated Load: 100 Ω — Max Power: 120 W — Crest Factor: 1.4

Notes

• The ratings above are maximum values; actual outputs may vary by ±20% as specified.
• Peak voltage and crest factors change with selected power levels and loads.
• Power can be reduced during procedures by adjusting the settings to achieve the required clinical effect.
• Always use the lowest effective power setting compatible with the intended surgical outcome.
