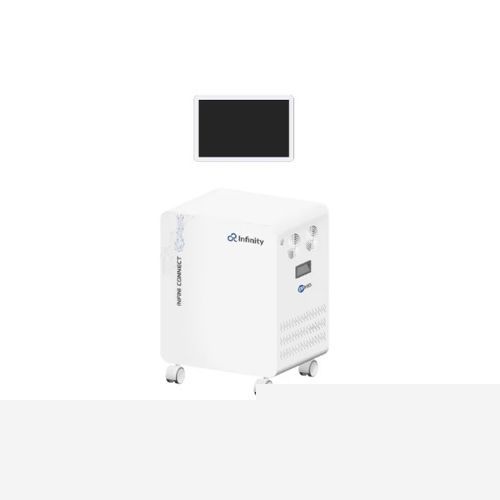

Operating room video recorder and streamer Infini Connect 2A

medicalwith DICOMstreaming

Product overview
Infini Connect 2A is a cabinet medical recording, streaming and conferencing system designed for clinical environments. It supports dual video sources, an integrated wireless microphone and secure patient data management. The 21.5" touchscreen, Windows 11 platform and the Infini software suite enable capture, live streaming and conferencing workflows. Order code LF90358.

Key highlights

• 2 × 4K 60 HDMI inputs
• Single, PIP and PAP multiview layouts
• 1 × 4K 60 loop-out video output
• Integrated wireless microphone
• 1 TB SSD with DICOM and patient data management
• Infini software suite included
• Order code LF90358

Specifications

• Description: 2 Input Medical Recording, Streaming & Conferencing
• Form: Cabinet
• Video Input (HDMI): 2 × 4K 60
• Video Input (SDI): -
• Video Output: 1 × 4K 60 (Loop out)
• Audio: Wireless Microphone
• Primary Display: 21.5" Touchscreen
• Recording Format: MPEG‑4 (H.264/H.265 + AAC)
• Internal Storage: 1 TB SSD
• Patient Data Management: Yes
• DICOM Compatible: Yes
• Multiview Layout: Single, PIP and PAP
• OS: Windows 11
• Processor: Intel i5 12th Gen, 6-core
• RAM: 16 GB DDR4
• Software: Infini suite ships by default
• Order Code: LF90358
