4K video recorder and streamer Infini Pulse 1A

with touchscreencompactstreaming

Overview

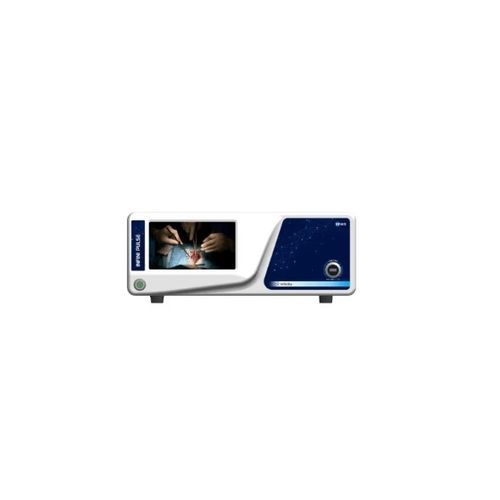

Infini Pulse 1A is a compact 1-input recording and streaming unit with an integrated wireless microphone for synchronized procedural audio. It features a cabinet form factor with a 7" touchscreen control, a 24" Full HD secondary display and 4K loop-out. The system runs on a quad-core Cortex-A76 platform and uses Infini Strima Mini for streaming; Infini OneView NAS can be included per project needs. Order code LF90354.

Key highlights

• 1 × 4K60 HDMI input
• 1 × 4K60 loop-out
• Integrated wireless microphone
• Quad-core Cortex-A76 CPU
• Infini Strima Mini streaming software
• Infini OneView NAS (optional)
• 7" touchscreen + 24" FHD secondary display
• Full HD recording H.264/H.265 + AAC
• Recording resolution: 1080p
• Order code LF90354

Specifications

• Description: 1-input recording and streaming with wireless mic
• Processor: Quad-core Cortex-A76 CPU
• Streaming software: Infini Strima Mini
• NAS software: Infini OneView (by project need)
• Video input (HDMI): 1 × 4K60
• Video input (SDI): none
• Video output: 1 × 4K60 (loop-out)
• Audio: Wireless microphone
• Interfaces: USB 3.0 (Type A), RJ45
• Primary display: 7" touchscreen
• Secondary display: 24" non-touch FHD
• Recording format: MPEG-4 (H.264/H.265 + AAC)
• Recording resolution: 1080p
• Storage: USB 2.0 HDD, NAS
• Streaming resolution: 4K60, 1080p60
• Multiview layout: none
• Order code: LF90354

Typical applications

• Live event capture and streaming
• Corporate broadcasts and webcasts
• Small OB units and mobile studios
• Conference and lecture recording

Ordering information
Order code LF90354. Contact sales for options including Infini OneView NAS and integration services.
