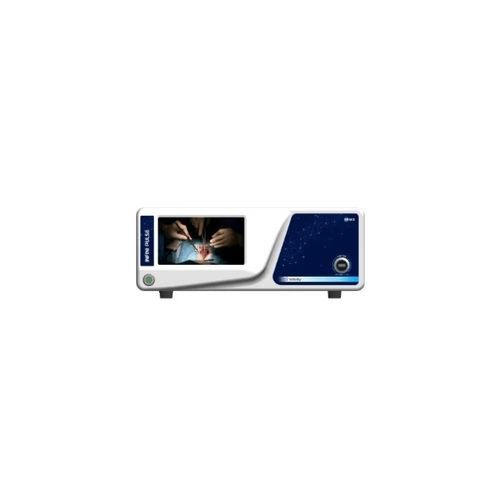

Medical video recorder and streamer Infini Pulse 4A

operating room4Kfull HD

Overview
Infini Pulse 4A is a 4-input recording and streaming processor designed for multi-source theatres and presentation environments. It accepts three 4K HDMI inputs and one 3G SDI input, supports Single, PIP, PAP and Quad multiview layouts, and includes a wireless microphone for flexible audio capture. Built on a quad-core Cortex-A76 platform with Infini Strima Mini streaming and optional Infini OneView NAS. Order code LF90356.

Key highlights

• 3 × 4K 60 HDMI + 1 × 3G SDI
• Single, PIP, PAP, and Quad multiview
• 4K 60 loop-out
• Wireless microphone
• Quad-core Cortex-A76 CPU
• Infini Strima Mini streaming
• Infini OneView NAS (by project need)
• 7" touchscreen + 24" FHD display
• Order code LF90356

Specifications
Parameter — Value
Description — 4 Input Recording and Streaming with wireless mic
Processor — Quad-core Cortex-A76 CPU
Streaming Software — Infini Strima Mini
NAS Software — Infini OneView (by project need)
Video Input (HDMI) — 3 × 4K 60
Video Input (SDI) — 1 × 3G SDI 1080p 60
Video Output — 1 × 4K 60 (Loop out)
Audio — Wireless Microphone
Other Interfaces — USB 3.0 (Type A), RJ45
Primary Display — 7" Touchscreen
Secondary Display — 24" Non-Touch FHD
Recording Format — MPEG 4 (H.264/H.265 + AAC)
Recording Resolution — 1080p
Storage — USB 2.0 HDD, NAS
Streaming Resolution — 4K 60, 1080p 60
Multiview Layout — Single, PIP, PAP, Quad
Order Code — LF90356

Technical specifications

• Description: 4 Input Recording and Streaming with wireless mic
• Processor: Quad-core Cortex-A76 CPU
• Streaming Software: Infini Strima Mini
• NAS Software: Infini OneView (by project need)
• Video Input (HDMI): 3 × 4K 60
• Video Input (SDI): 1 × 3G SDI 1080p 60
• Video Output: 1 × 4K 60 (Loop out)
• Audio: Wireless Microphone
• Other Interfaces: USB 3.0 (Type A), RJ45
• Primary Display: 7" Touchscreen
• Secondary Display: 24" Non-Touch FHD
• Recording Format: MPEG 4 (H.264/H.265 + AAC)
• Recording Resolution: 1080p
• Storage: USB 2.0 HDD, NAS
• Streaming Resolution: 4K 60, 1080p 60
• Multiview Layout: Single, PIP, PAP, Quad
• Order Code: LF90356
