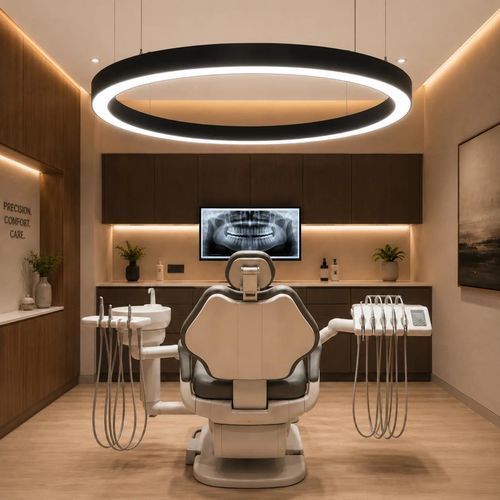

Ceiling-mounted lighting EVO Ring

for dental clinicsfor clinicLED

Overview
EVO Ring — Architectural LED ring for dental clinics, reception areas and premium interiors. Provides a structured visual appearance while keeping a refined, minimalist line. Available in numerous diameters (Ø450 to Ø5060 mm). Profile 60×80 mm, opal diffuser and 6063 aluminum profile, suitable for decorative projects as well as technical environments.

Key points

• Indicative price: From €3,500 excl. VAT (depending on configuration)
• Light ring
• Available diameters: Ø450 to Ø5060 mm
• Control: DALI DT6 / DALI DT8 (advanced control options)
• Installation: suspension, ceiling mount or recessed (installation optional depending on project)
• Luminaire warranty: 5 years

Benefits

• Strong architectural presence: structured ring providing a distinctive visual signature.
• Uniform light output: opal diffuser for comfortable, architectural illumination.
• Advanced control: DALI DT6/DT8, 0-10V, Triac and other modes for flexibility on premium projects.

Recommended applications

• Dental clinic (over the chair or in treatment rooms)
• Waiting room
• Reception (premium visual signature)
• Office
• Decorative space (architectural integration)
• Large volumes (diameters up to Ø5060 mm for spectacular volumes)

Specifications (excerpt)
Type: Circular suspension LED
Main dimensions: 1,200 × 100 mm (120 × 10 cm)
Design: Ring with 6063 aluminum profile and opal diffuser
Profile dimensions: W60 × H80 mm
Supply: AC100-277V / AC220-240V, 50/60Hz
LED: SANAN SMD2835
Drivers: BOKE / Cupower
Color temperatures: 3000K / 4000K / 6000K
CRI: 80Ra
Power factor: 0.95
Operation: Flicker-free
Beam angle: 120°
Available functions: ON/OFF / 0-10V / DALI / DALI DT6 / DALI DT8 / Triac dimming
Installation: Suspension, ceiling mount or recessed — installation optional depending on project
Finishes: Black, white, gold, silver
Ingress protection: IP20
Available diameters: Ø450 / Ø660 / Ø780 / Ø900 / Ø1060 / Ø1200 / Ø1560 / Ø1860 / Ø2060 / Ø2460 / Ø3060 / Ø3660 / Ø4060 / Ø4560 / Ø5060 mm
Powers: From 20W to 320W
Luminous flux: From 2,200 lm to 35,200 lm
Luminaire warranty: 5 years
Indicative price: From €3,500 excl. VAT, depending on configuration
Delivery: Europe, priced per project

Technical features / specifications

• Type: Circular suspension LED
• Main dimensions: 1,200 × 100 mm (120 × 10 cm)
• Design: Ring with 6063 aluminum profile and opal diffuser
• Profile dimensions: W60 × H80 mm
• Supply: AC100-277V / AC220-240V, 50/60Hz
• LED: SANAN SMD2835
• Drivers: BOKE / Cupower
• Color temperatures: 3000K / 4000K / 6000K
• CRI: 80Ra
• Power factor: 0.95
• Operation: Flicker-free
• Beam angle: 120°
• Available functions: ON/OFF / 0-10V / DALI / DALI DT6 / DALI DT8 / Triac dimming
• Installation: Suspension, ceiling mount or recessed — installation optional depending on project
• Finishes: Black, white, gold, silver
• Ingress protection: IP20
• Available diameters: Ø450 / Ø660 / Ø780 / Ø900 / Ø1060 / Ø1200 / Ø1560 / Ø1860 / Ø2060 / Ø2460 / Ø3060 / Ø3660 / Ø4060 / Ø4560 / Ø5060 mm
• Powers: From 20W to 320W
• Luminous flux: From 2,200 lm to 35,200 lm
• Luminaire warranty: 5 years
