Ceiling-mounted lighting Hexa Disc

for dental clinicsLEDhomogeneous

Presentation

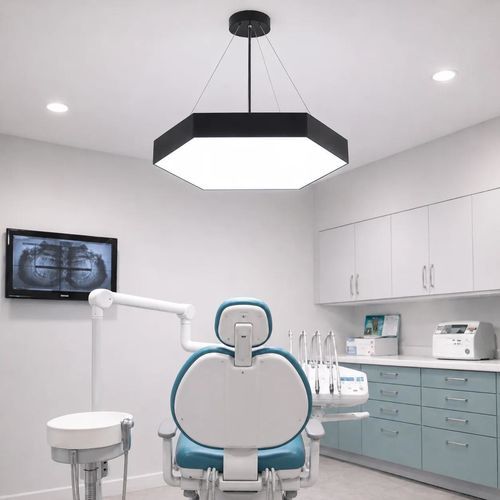

Full hexagonal LED pendant designed for receptions, waiting areas, offices, corridors and premium interiors. Hexa Disc is distinguished by its solid hexagonal shape that provides a strong, structured visual presence. Low profile height of 70 mm and opal diffuser for uniform, pleasant light; a distinctive alternative to a classic circular ceiling luminaire.

Key points

• Solid hexagonal design with marked visual presence
• Low profile height: 70 mm
• Opal diffuser for homogeneous light distribution
• Control modes: non-dimmable, 0-10V, DALI
• Fixture warranty: 5 years
• Indicative price: from €3,000 excl. VAT (depending on configuration)

Recommended applications

• Waiting room
• Reception area
• Office
• Corridor
• Premium interior
• Architectural projects

Available finishes

• White
• Silver
• Black

Options and customization

• Color temperatures: 3000K / 4000K / 6000K / customizable
• Dimming modes: non-dimmable, 0-10V, DALI
• Available diameters: Φ400 to Φ1200 mm depending on project
• Installation types: pendant, ceiling or wall (installation optional)
• Project support: layout study included

Technical summary
Type: Full hexagonal LED pendant
Profile: Aluminium 6063 with opal diffuser
Supply: AC100-277V / AC220-240V, 50/60Hz
LED: SMD2835
Drivers: Cupower (AC100-277V) / BOKE (AC220-240V)
Color temperatures: 3000K / 4000K / 6000K / customizable
Luminous efficacy: 100 to 110 lm/W
CRI: 82
Power factor: 0.95
Operation: Flicker-free
Beam angle: 120°
Control modes: Non-dimmable, 0-10V dimming, DALI dimming
Installation: Pendant, wall-mounted or ceiling-mounted — installation optional
Finishes: Black, white, silver
Height: 70 mm
Available diameters: Φ400 / Φ500 / Φ600 / Φ800 / Φ900 / Φ1000 / Φ1200 mm
Powers: From 24W to 144W
Luminous flux: From 2400 lm to 14400 lm
IP rating: IP20
Fixture warranty: 5 years
Indicative price: From €3,000 excl. VAT, depending on configuration
Delivery: Europe, quoted per project

Technical characteristics / specifications

• Type: Full hexagonal LED pendant
• Profile: Aluminium 6063 with opal diffuser
• Supply: AC100-277V / AC220-240V, 50/60Hz
• LED: SMD2835
• Drivers: Cupower (AC100-277V) / BOKE (AC220-240V)
• Color temperatures: 3000K / 4000K / 6000K / customizable
• Luminous efficacy: 100 to 110 lm/W
• CRI: 82
• Power factor: 0.95
• Operation: Flicker-free
• Beam angle: 120°
• Control modes: Non-dimmable, 0-10V, DALI
• Installation: Pendant, wall or ceiling — installation optional
• Finishes: Black, white, silver
• Height: 70 mm
• Available diameters: Φ400 / Φ500 / Φ600 / Φ800 / Φ900 / Φ1000 / Φ1200 mm
• Powers: From 24W to 144W
• Luminous flux: From 2400 lm to 14400 lm
• IP rating: IP20
• Fixture warranty: 5 years
• Indicative price: From €3,000 excl. VAT (depending on configuration)
