Wall-mounted lighting Hexa Curvependantceiling-mountedLED
Add to favorites
Compare this product
Characteristics
- Mounting
- ceiling-mounted, pendant, wall-mounted
- Light source
- LED
- Other characteristics
- homogeneous
- Color temperature
3,000 K, 6,000 K, 40,000 K
- Color rendering index
80 unit
Description
Presentation

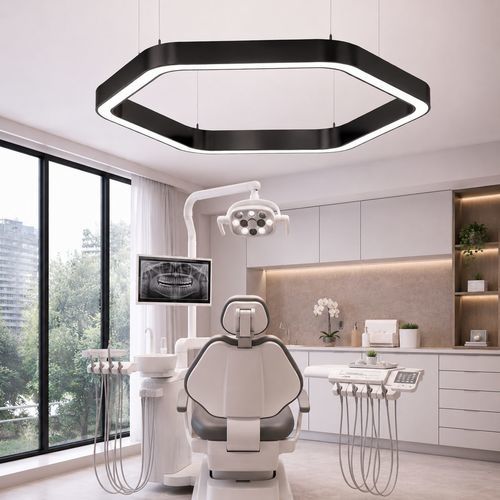

Hexa Curve is a rounded hexagonal LED pendant designed for receptions, waiting areas, offices and premium care spaces. Its 80 mm height gives a pronounced architectural presence and its opal diffuser provides uniform, refined light suited to demanding professional environments.
Key features
Recommended applications
Characteristics (table)
Type: Rounded hexagonal LED pendant
Profile: Aluminium 6063 with opal diffuser
Input: AC100-277V / AC220-240V, 50-60Hz
LED: SANAN SMD2835
Drivers: BOKE / Cupower
Correlated color temperatures: 3000K / 4000K / 6000K / customizable
Luminous efficacy: 100 to 110 lm/W
CRI: 80Ra
Power factor: 0.90
Operation: Flicker-free
Beam angle: 120°
Control modes: ON/OFF, 0-10V dimming, DALI dimming
Installation: Pendant, ceiling or wall — wall mounting optional
Finishes: Black, white
Height: 80 mm
Available diameters: Φ400 / Φ600 / Φ800 / Φ900 / Φ1000 / Φ1200 mm
Powers: From 36W to 108W
Luminous flux: From 3600 lm to 10800 lm
IP rating: IP20
Fixture warranty: 5 years
Indicative price: From €3,000 excl. VAT, depending on configuration
Delivery: Europe, priced per project
Technical specifications
Hexa Curve is a rounded hexagonal LED pendant designed for receptions, waiting areas, offices and premium care spaces. Its 80 mm height gives a pronounced architectural presence and its opal diffuser provides uniform, refined light suited to demanding professional environments.
Key features
- Rounded hexagonal design offering a softer appearance than a sharp-angled hexagon
- Opal diffuser for uniform light distribution
- Low height (80 mm) with strong architectural presence
- Control options: ON/OFF, 0-10V dimming, DALI dimming
- Mounting: pendant, ceiling or wall (wall mounting optional)
- Fixture warranty: 5 years
Recommended applications
- Waiting room
- Reception area
- Premium office
- Premium care space
- Contemporary project
- Architectural project
Characteristics (table)
Type: Rounded hexagonal LED pendant
Profile: Aluminium 6063 with opal diffuser
Input: AC100-277V / AC220-240V, 50-60Hz
LED: SANAN SMD2835
Drivers: BOKE / Cupower
Correlated color temperatures: 3000K / 4000K / 6000K / customizable
Luminous efficacy: 100 to 110 lm/W
CRI: 80Ra
Power factor: 0.90
Operation: Flicker-free
Beam angle: 120°
Control modes: ON/OFF, 0-10V dimming, DALI dimming
Installation: Pendant, ceiling or wall — wall mounting optional
Finishes: Black, white
Height: 80 mm
Available diameters: Φ400 / Φ600 / Φ800 / Φ900 / Φ1000 / Φ1200 mm
Powers: From 36W to 108W
Luminous flux: From 3600 lm to 10800 lm
IP rating: IP20
Fixture warranty: 5 years
Indicative price: From €3,000 excl. VAT, depending on configuration
Delivery: Europe, priced per project
Technical specifications
- Type: Rounded hexagonal LED pendant
- Profile: Aluminium 6063 with opal diffuser
- Input: AC100-277V / AC220-240V, 50-60Hz
- LED: SANAN SMD2835
- Drivers: BOKE / Cupower
- Correlated color temperatures: 3000K / 4000K / 6000K / customizable
- Luminous efficacy: 100 to 110 lm/W
- CRI: 80Ra
- Power factor: 0.90
- Operation: Flicker-free
- Beam angle: 120°
- Control modes: ON/OFF, 0-10V dimming, DALI dimming
- Installation: Pendant, ceiling or wall (wall mounting optional)
- Finishes: Black, white
- Height: 80 mm
- Diameters: Φ400 / Φ600 / Φ800 / Φ900 / Φ1000 / Φ1200 mm
- Powers: 36W to 108W
- Luminous flux: 3600 lm to 10800 lm
- IP rating: IP20
- Warranty: 5 years
- Indicative price: From €3,000 excl. VAT (depending on configuration)
