Emergency trolley FG-L-02
intensive careanesthesiafor operating rooms

Emergency trolley - FG-L-02 - Fangge Medical - intensive care / anesthesia / for operating rooms
Emergency trolley - FG-L-02 - Fangge Medical - intensive care / anesthesia / for operating rooms
Emergency trolley - FG-L-02 - Fangge Medical - intensive care / anesthesia / for operating rooms - image - 2
Emergency trolley - FG-L-02 - Fangge Medical - intensive care / anesthesia / for operating rooms - image - 3
Emergency trolley - FG-L-02 - Fangge Medical - intensive care / anesthesia / for operating rooms - image - 4
Emergency trolley - FG-L-02 - Fangge Medical - intensive care / anesthesia / for operating rooms - image - 5
Add to favorites
Compare this product
Go to the Fangge Medical website for more information

Characteristics

Applications
hospital, emergency, anesthesia, intensive care, for operating rooms
Use
for instruments, for medicine, for consumables
Function
treatment, patient care, auxiliary, medicine distribution
Material
aluminum
Components
with drawer, 5-drawer, with bin, with storage unit
Configuration
mobile

Description

Product overview

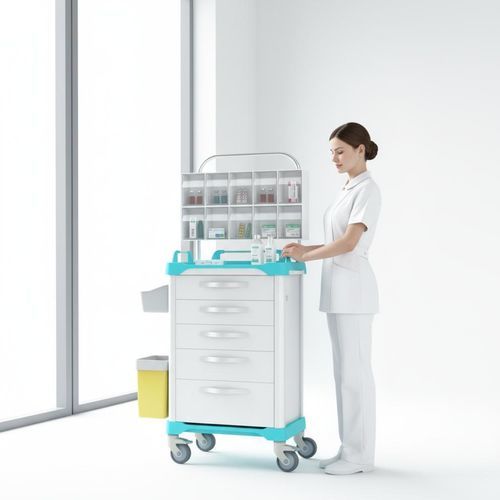

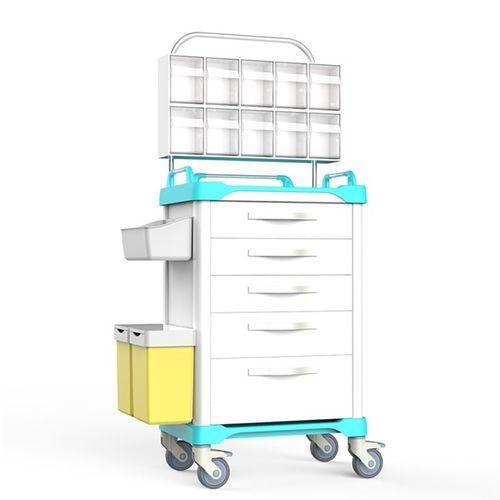

  • FG-L-02 is a medical anesthesia cart designed for operating rooms and perioperative areas. It features an all‑aluminum lightweight bolt‑joint frame, injection‑molded ABS worktop with soft glass cover, modular medicine organizer and a dedicated flip‑open anesthesia bin system for fast, safe access to drugs and instruments.


Application scenarios
  • Intended for operating theatres, anesthesia departments, PACU, ICU, emergency rooms and intervention suites for anesthesia preparation, intraoperative drug management, instrument organization and perioperative support.


Features and functions
  • All‑aluminum bolt‑joint frame: lightweight, high rigidity and enhanced impact resistance without welded joints.
  • Worktop: injection‑molded ABS concave surface with non‑slip texture and transparent soft glass overlay for easy cleaning and sterile use.
  • Panels: aluminum‑plastic composite with reinforced edges for long‑term durability.
  • Guardrails: three‑sided protective rails with stainless steel tubes and plastic components to prevent items from falling.
  • Drawer system: five tiered drawers with three‑section silent slides, 3.2 s soft‑closing damping, tested for 40,000 cycles and up to 30 kg load per drawer.
  • Modular organizer: 9‑cell adjustable divider medicine box allowing flexible compartment layouts.
  • Anesthesia module: dual‑row 5‑bin flip‑open unit with clear labeling windows and 40° opening for rapid visual access; removable for cleaning.
  • Casters: 4‑inch medical‑grade double‑brake silent wheels (PA6 frame, TPR tread) with precision bearings for smooth, quiet mobility and reliable locking.
  • Ergonomics: optimized handle angle (90°–110°) to reduce operator fatigue during long procedures.
  • Accessories: removable ABS storage box, flip‑top waste bin and customizable modular attachments for clinical workflow needs.


Core advantages
  • Operating‑room oriented design with rounded, no‑sharp‑edge body for improved safety.
  • All‑aluminum bolt‑joint construction for structural stability and long service life.
  • Concave ABS worktop with protective soft glass to prevent slippage and simplify disinfection.
  • Tiered drawer layout and modular nine‑grid divider for efficient classification and fast access to drugs and consumables.
  • Silent soft‑closing drawers and high load capacity to meet sterile environment requirements.
  • Visible flip‑open anesthesia bins reduce medication errors and speed up drug retrieval.
  • High‑quality casters and bearings ensure stable movement and positioning in clinical settings.


Technical specifications
  • Model: FG-L-02
  • Patent No.: 202421395608.4
  • Overall dimensions: 580 × 380 × 906 mm
  • Frame: All‑aluminum lightweight bolt‑joint construction (no welding)
  • Worktop: Injection‑molded ABS concave surface with non‑slip texture and soft glass cover
  • Panels: Aluminum‑plastic composite with reinforced edges
  • Drawer configuration: 5 drawers (3×105 mm shallow + 135 mm medium + 195 mm deep) with three‑section silent slides
  • Drawer damping: Soft‑closing ~3.2 s; tested >40,000 cycles; 30 kg load per drawer
  • Medicine organizer: Modular 9‑grid with adjustable dividers and removable label frames
  • Anesthesia module: Dual‑row 5‑bin flip‑open, 40° opening, removable with clear label windows
  • Casters: Φ100 mm medical TPR wheels, PA6 frame, precision deep‑groove bearings, double‑brake
  • Ergonomics: Handle/arm angle optimized 90°–110°
  • Accessories: Removable ABS storage box, flip‑top waste bin, customizable modular accessories
  • Certifications: ISO9001:2015, CE (as applicable)
  • Warranty: Factory warranty 3 years; design service life ~10 years
