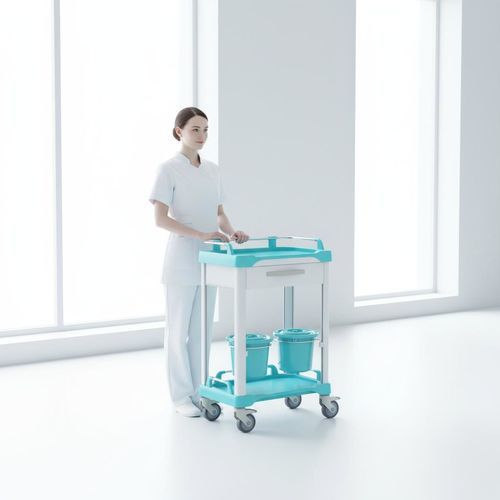

Medical trolley FG-L-06
for medicinetreatmentplastic

Medical trolley - FG-L-06 - Fangge Medical - for medicine / treatment / plastic
Medical trolley - FG-L-06 - Fangge Medical - for medicine / treatment / plastic
Medical trolley - FG-L-06 - Fangge Medical - for medicine / treatment / plastic - image - 2
Medical trolley - FG-L-06 - Fangge Medical - for medicine / treatment / plastic - image - 3
Medical trolley - FG-L-06 - Fangge Medical - for medicine / treatment / plastic - image - 4
Medical trolley - FG-L-06 - Fangge Medical - for medicine / treatment / plastic - image - 5
Add to favorites
Compare this product
Go to the Fangge Medical website for more information

Characteristics

Applications
medical
Use
for medicine
Function
treatment
Material
plastic, stainless steel, aluminum
Components
with drawer
Configuration
mobile

Description

Product description
Product name: FG-L-06 Treatment trolley

Key features
  • Size: 580 x 380 x 860 mm
  • ABS injection-molded frosted concave countertop with transparent soft glass protection
  • All-aluminum lightweight frame providing crash resistance and reduced weight
  • Stainless steel round support pipes combined with plastic parts for three-sided item protection
  • Side and rear panels in aluminum-plastic composite with reinforcing ribs at upper and lower edges
  • Full screw assembly without solder joints for compact, serviceable structure
  • Ergonomic handle-to-countertop angle to reduce caregiver fatigue
  • Drawer with modular medicine box separators as standard for organized storage
  • Three-section silent slide rails (1.2/1.2/1.5 mm) with built-in damper providing 3.2 s buffer
  • 4-inch dual-brake medical-grade silent casters; PA6 wheel frame; single-row centripetal ball bearings for smooth, accurate motion
  • Modular "LEGO" concept: accessories and modules can be added to customise layout


Specifications
  • Model number: FG-L-06
  • Overall dimensions (WxDxH): 580 x 380 x 860 mm
  • Countertop: ABS injection-molded, frosted concave design with transparent soft glass
  • Frame: all-aluminum lightweight frame
  • Support structure: stainless steel round tubes with plastic parts for three-sided protection
  • Panels: aluminum-plastic composite plates with reinforcing ribs
  • Assembly: full screw connections, no solder joints
  • Drawer system: modular medicine box separators; three-section silent rails (1.2/1.2/1.5 mm); built-in damper (3.2 s)
  • Casters: 4-inch dual-brake medical-grade silent casters; wheel frame PA6; single-row centripetal ball bearings
  • Ergonomics: optimized angle between handle and countertop to reduce fatigue
  • Modularity: accessories and units can be added per modular concept
  • Patent: 202421395608.4
  • Warranty: 3 years; designed service life approx. 10 years
