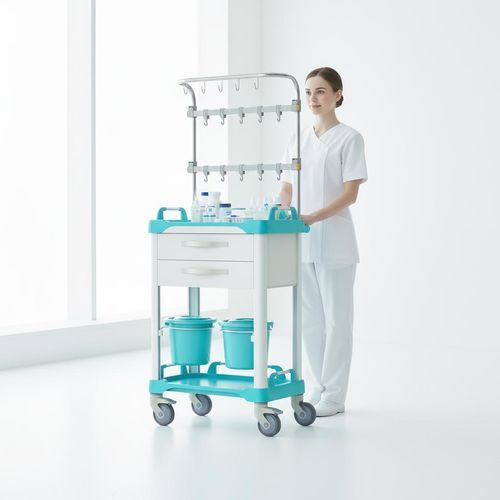

Hospital trolley FG-L-03

medicalfor infusion pumpsfor intravenous procedures

Seeking global distributors. OEM & ODM services available.

Core Advantages
FG-L-03 is a professional infusion trolley designed for efficient ward nursing and multi-patient infusion workflows. It combines an all-aluminum lightweight frame, the proprietary NIMBLE adjustable infusion system, dual soft-closing drawers and modular storage for streamlined point-of-care use.

Key Specifications

• Frame: All-aluminum LIGHT-WEIGHT structure with bolted assembly (no welding) for increased rigidity and 20%–30% higher impact resistance
• Worktop: Concave ABS injection-molded top with non-slip texture and protective soft glass cover
• Panels: Aluminum-plastic composite side and rear panels with reinforced edges for durability
• Guardrails: Three-sided protective guardrail using steel tubes and plastic components to prevent items from falling
• Drawers: Two large drawers with thickened silent slides; 3.2 s soft-closing; tested for 40,000 cycles; 30 kg load capacity per drawer
• Storage: Modular 9-grid organizer with adjustable dividers for flexible layout
• Infusion system: Patented NIMBLE 3-row height-adjustable infusion beam; movable U-shaped anti-drop hooks with label slots
• Casters: 4-inch medical double-brake silent castors; PA6 frame, TPR wheel, precision bearing for stable and quiet movement
• Ergonomics: Optimized arm angle (90°–110°) to reduce fatigue during extended nursing tasks
• Extras: Two 300° rotating lidded waste containers (detachable) and customizable modular accessories

Dimensions

• Overall size: 580×380×860 mm

Application Scenarios

• Suitable for hospital wards, infusion rooms, outpatient clinics, nursing stations and emergency areas for multi-patient infusion management, drug dispensing and routine nursing tasks

Patents & Certifications

• Patent number: 202421395608.4
• Quality & certification: ISO9001:2015 quality management system; CE export certification

Characteristics / Specifications

• Model: FG-L-03
• Frame material: All-aluminum, bolted assembly (no welding)
• Worktop: Concave ABS injection-molded top with non-slip texture and protective soft glass
• Panels: Aluminum-plastic composite with reinforced edges
• Guardrails: Three-sided with steel tubes and plastic parts
• Drawers: 2 large silent drawers, 3.2 s soft-closing, tested to 40,000 cycles, 30 kg load each
• Storage system: Modular 9-grid organizer with adjustable dividers
• Infusion system: Patented NIMBLE 3-row height-adjustable beam; movable U-shaped anti-drop hooks with label slots
• Casters: 4-inch medical double-brake silent castors (PA6 frame, TPR wheel, precision bearing)
• Ergonomics: Arm angle optimized to 90°–110°
• Extras: Two 300° rotating lidded waste containers (detachable), configurable accessories
• Overall dimensions: 580 × 380 × 860 mm
