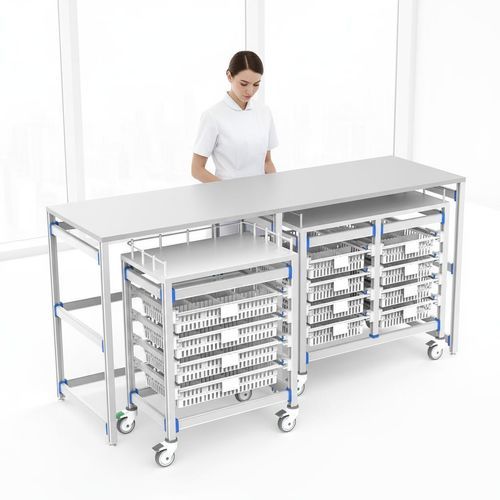

Operating room workstation FG-PW-60/40/4F/02

with shelvesmodularon casters

Seeking global distributors. OEM & ODM services available.

Lightweight anodized aluminum frame with seamless closed-loop design ensures structural rigidity and hygiene compliance. ISO 600×400mm modular baskets with tilt-out assist provide efficient item access and configuration flexibility. Dual carts can operate independently or dock into the stainless-steel tabletop workstation. Medical-grade silent casters ensure stable, quiet, and maneuverable performance in clinical environments.

Product Performance:
- Integrated 304 stainless steel tabletop with internal support tubes
- High-strength anodized aluminum frame with smooth, non-porous surface
- ABS injection-molded connectors with snap-fit modular joints
- ISO 600×400mm standard ventilated basket system
- Basket height: 100mm
- Adjustable dividers for dynamic compartment configuration
- Dual label frames: 58×90mm (external), 42×65mm (internal)
- 2° tilt-out drawers with roller-assist glide system
- Stainless steel safety railings on three sides of each cart top
- φ100mm medical-grade silent casters with:
- Dual brake system
- Dual directional control
- 360° swivel and straight-line self-correction
- Nested design: small and large carts can be stored under workstation
- Fully customizable in size, configuration, and basket arrangement

Dimensions:
- Workstation: 2185×668×1040mm
- Large cart: 984×628×900mm
- Small cart: 710×456×900mm
- Basket: ISO 600×400mm × H100mm
- Label frames: 58×90mm (external), 42×65mm (internal)

Application Scenarios:
Ideal for hospital operating rooms, dispensing areas, and mobile storage points. Enables streamlined supply access during high-turnover procedures and modular transport between zones.
