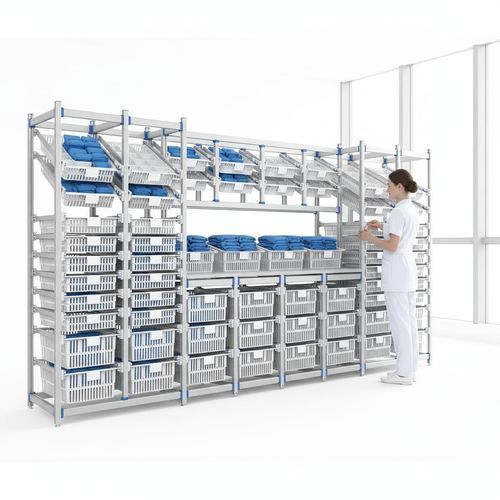

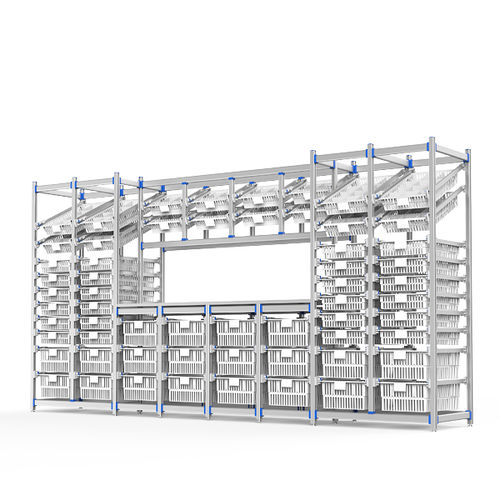

Modular shelving unit FG-P-4010F/3F04/2F02

for basket storagestainless steelaluminium

Seeking global distributors. OEM & ODM services available.

Large-capacity modular treatment station with a reinforced 304 stainless steel worktop and anodized aluminum frame. Supports both ISO 600×400mm and 400×300mm basket systems for flexible, cross-compatible storage. Ventilated baskets with adjustable dividers and dual labeling improve organization and access speed. Closed-frame design ensures hygiene and durability. Adjustable stainless steel leveling feet allow precise stability in clinical environments.

Product Performance:
- 304 stainless steel tabletop with reinforced support tubing
- Wide and flat worktop for multi-purpose clinical operations
- High-strength anodized aluminum alloy frame, seamless non-porous design
- ABS injection-molded connectors with modular snap-fit joints
- Compatible with ISO 600×400mm and 400×300mm ventilated baskets
- Basket heights: 100mm (shallow), 200mm (deep)
- Internal adjustable dividers for flexible compartment layout
- Dual label frames: 58×90mm (external), 42×65mm (internal)
- 2° tilt-out drawer rails with roller-assist for smooth access
- Stainless steel leveling feet with ±20mm adjustment range
- Fully customizable in size, basket configuration, and structure

Dimensions:
- Overall dimensions: ≥3835×628×900/2000mm
- Worktop dimensions: ≥1865×628×900mm
- Basket system: ISO 600×400mm and ISO 400×300mm
- Basket heights: 100mm (shallow), 200mm (deep)
- Small basket rack: ≥1865×315mm
- Label frames: 58×90mm (external), 42×65mm (internal)
- Leveling feet: ±20mm

Application Scenarios:
Designed for treatment rooms, preparation areas, and hospital SPD centers requiring multi-format storage and ergonomic work surfaces. Supports high-frequency access to consumables,
