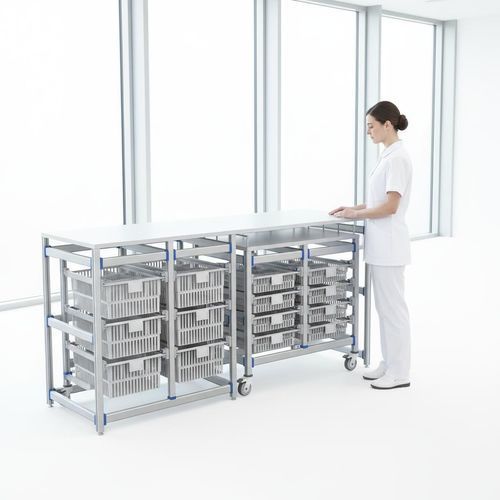

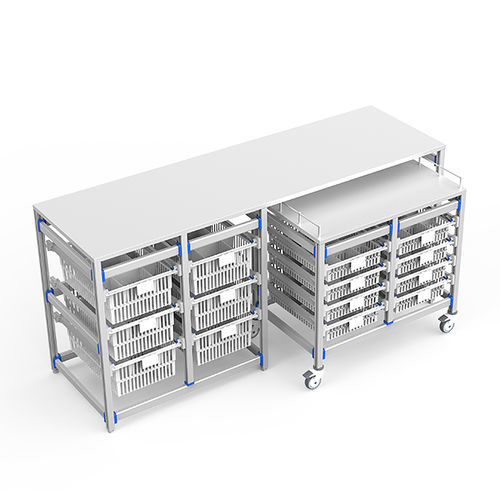

Nursing care workstation FG-PW-60/40/3F/4F02

with shelveson castersmodular

Seeking global distributors. OEM & ODM services available.

Constructed with high-strength anodized aluminum and a seamless frame, this modular workstation integrates a full-size medical cart that can operate independently or nest within the main unit. ISO 600×400mm baskets provide flexible storage with adjustable dividers and dual labeling options. Stainless steel top with railings ensures flatness, stability, and safety, while medical-grade casters enable smooth maneuvering across clinical environments.

Product Performance:
• Brushed 304 stainless steel top panel with reinforced support tubing
• High-strength anodized aluminum alloy frame with non-porous seamless design
• ABS injection-molded connectors with precision snap-fit joints
• Compatible with ISO 600×400mm ventilated baskets
• Basket height options: 100mm (shallow), 200mm (deep)
• Adjustable internal dividers for dynamic layout customization
• Dual label frames: 58×90mm (external), 42×65mm (internal)
• 2° tilt-out drawer mechanism with roller-assisted slide system
• Cart top equipped with stainless steel 3-side safety rails
• φ100mm medical-grade casters with noise-reduction and shock-absorption features
• Dual brake system
• Dual directional lock
• 360° maneuverability with straight-line correction
• Modular docking design: cart can be stored under the workstation or used separately
• Fully customizable in configuration, layout, and dimensions

Dimensions:
• Overall Workstation: 2185×668×1040mm
• Integrated Cart: 984×628×900mm
• Basket size: ISO 600×400mm
• Basket heights: 100mm (shallow), 200mm (deep)
• Label frames: 58×90mm (external), 42×65mm (internal)
• Casters: φ100mm
