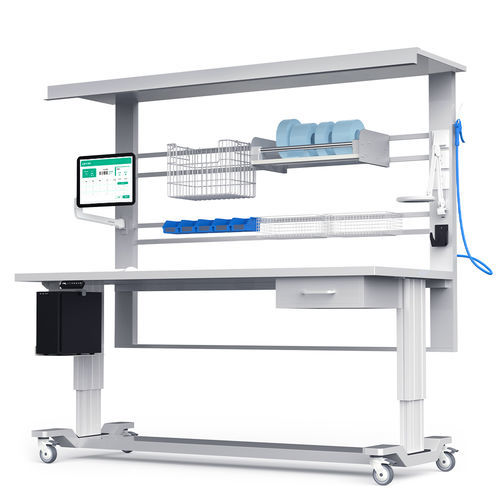

Table-mounted instrument table D19A

stainless steelaluminiumelectric

Overview
Ergonomic SUS304 stainless steel workstation with dual electric lifting system and 3-speed memory height. Integrated lighting, power sockets and 600mm pouch cutter support full CSSD packaging procedures. Optional concealed high-pressure air gun enables deep instrument cleaning. Laser-welded structure and lockable medical casters ensure stable, clean and flexible operation.

Core Advantages

• Dual electric lifting with 3-position memory for sitting and standing workflows
• Seamless SUS304 surfaces for easy disinfection and sterilization compatibility
• Integrated lighting and multiple power outlets to support packaging and traceability equipment
• Optional concealed high-pressure air gun for instrument dust and moisture removal
• Pre-assembled modular design for fast installation and integration into hospital CSSD workflows

Key Specifications

• Material: National standard 304 stainless steel + high-strength aluminum lifting profile
• Lifting range: Tabletop 800–1200 mm, top hood 1800–2200 mm
• Control system: 3-gear memory intelligent height controller
• Configuration: 4 groups of power sockets, independent lighting switch, 600 mm alloy blade pouch cutter
• Accessories: Magnifier, monitor arm, scanner bracket, storage baskets and host hanger
• Optional: Concealed high-pressure air gun dust and water removal system
• Storage: Single-layer silent closed drawer
• Mobility: Medical silent casters with four-wheel independent brake
• Craft: CNC laser cutting, precision welding and brushed polishing
• Assembly: Pre-assembled modular structure, ready for immediate use
• Customization: Full customization of size, lifting stroke, structure and accessories

Dimensions
Overall: 1800×700×1800 mm

Application Scenarios
Designed for hospital CSSD packaging zones, PIVAS, operating rooms, endoscopy and dental disinfection rooms. Suitable for instrument inspection, deep-clean pretreatment, pouch cutting, sealing and sterilization traceability recording.

Selling Point
Human-centered electric lifting with memory function adapts to sitting and standing work. Seamless SUS304 surfaces simplify disinfection. Integrated multifunction design increases packaging efficiency. Optional concealed air gun improves cleaning quality. Laser-welded structure and lockable casters support standardized hospital intelligent upgrades.

Technical specifications

• Model: D19A
• Material: SUS304 stainless steel; high-strength aluminum lifting profile
• Tabletop lifting range: 800–1200 mm
• Top hood lifting range: 1800–2200 mm
• Height control: 3-gear memory intelligent controller
• Power/configuration: 4 power socket groups, independent lighting switch
• Pouch cutter: 600 mm alloy blade cutter
• Optional systems: Concealed high-pressure air gun for dust and water removal
• Storage: Single-layer silent closed drawer
• Mobility: Medical silent casters with four-wheel independent brake
• Manufacturing: CNC laser cutting, precision welding, brushed polishing
• Assembly: Pre-assembled modular structure
• Customization: Size, lifting stroke, structure and accessories configurable
