Table-mounted instrument table D17A

stainless steelmanuel

Product name

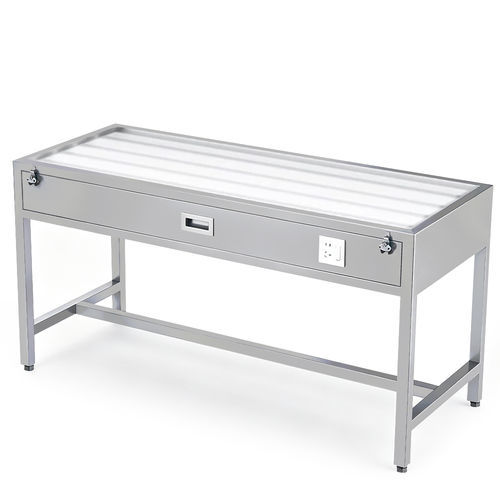

Light inspection table D17A — 304 stainless steel with built-in LED inspection window

Core advantages
The D17A inspection table is constructed from seamless 304 stainless steel and features an embedded LED inspection window with heat-dissipation holes for stable long-term operation. A buckle-type maintenance cover enables quick lamp replacement. The robust 38×38 mm square-tube frame with height-adjustable feet complies with hospital infection-control requirements and GMP standards. The seamless surface simplifies cleaning and disinfection.

Key specifications

• Material: National standard 304 stainless steel
• Frame: 38×38 mm thick stainless steel square tube, wall thickness ≥1.0 mm
• Tabletop: Integrally bent stainless steel with built-in inspection light window
• Light panel: Tempered glass (transparent / frosted optional)
• Feature: Heat-dissipation holes + buckle-type maintenance baffle with integrated light switch
• Legs: Height-adjustable support feet
• Craft: Full-penetration welding & fine polishing
• Assembly: Supplied pre-assembled, ready for use
• Customization: Custom size, light window, light source and structure

Dimensions
Overall: 1000×600×750 mm

Application scenarios
Designed for hospital PIVAS, pharmaceutical clean workshops and drug-testing laboratories for standardized visual inspection of infusions and injections to detect impurities and appearance defects.

Selling points

• Corrosion-resistant 304 stainless steel construction
• Embedded inspection light window with heat dissipation
• Quick-repair buckle-type maintenance cover with integrated switch
• Stable thick-frame design with adjustable protective feet compliant with GMP
• Seamless, easy-to-clean surface suitable for infection control
• Fully customizable: size, light window, light source and structure

Technical specifications

• Model: D17A
• Material quality: 304 stainless steel
• Frame section: 38×38 mm square tube, wall thickness ≥1.0 mm
• Tabletop construction: Integrally bent stainless steel with built-in inspection light window
• Light panel material: Tempered glass (transparent or frosted optional)
• Heat management: Heat-dissipation holes included
• Maintenance: Buckle-type maintenance baffle enabling quick light repair and integrated light switch
• Legs: Height-adjustable support feet
• Welding & finish: Full-penetration welding and fine polishing for a seamless surface
• Assembly: Supplied pre-assembled
• Customization options: Size, light window, light source and structural adjustments available
• Overall dimensions: 1000×600×750 mm
