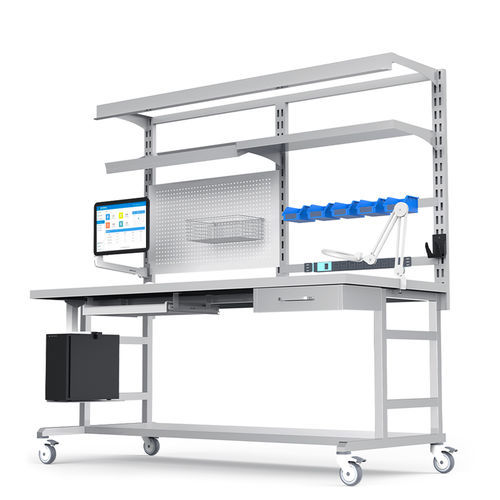

Table-mounted instrument table D20A

stainless steelmanuel

Core Advantages
Modular SUS304 stainless-steel inspection platform designed for CSSD instrument verification. Adjustable upright frame enables flexible positioning of the lighting bracket, shelves and pegboard mounting system. Integrated PDU power strip, top lighting, magnifier bracket, monitor arm and pull-out keyboard tray are included. Pre-assembled modular delivery supports single-sided or double-sided workflows for inspection, sorting and traceability.

Key Specifications

• Material: SUS304 stainless steel
• Tabletop Height: 800 mm
• Overall Dimension: 1800×700×1800 mm
• Tabletop Structure: One-piece bent stainless steel flat operation surface
• Upper Frame: Adjustable upright posts, top lighting bracket, double-layer storage shelves, pegboard mounting system
• Electrical Fittings: Integrated PDU power strip, top lighting system
• Standard Accessories: Universal monitor swing arm, 10× LED dimmable magnifier bracket, stainless-steel storage mesh basket, blue divided material box, pull-out keyboard tray, left-side host hanging bracket
• Storage: Right-side single-layer silent closed drawer
• Mobility: 4-inch medical silent TPR swivel casters with four-wheel independent brake positioning
• Craft: CNC laser cutting, fiber-laser precision welding, fine brushed polishing
• Assembly: Factory modular pre-assembled, ready-to-use on site
• Customization: Full-range customization for double-sided layout, tabletop size, shelf quantity, hanging accessories, drawer configuration and electrical fittings

Dimensions
Overall: 1800×700×1800 mm

Application Scenarios
Suitable for CSSD inspection areas, PIVAS, operating-room instrument pre-processing rooms, endoscopy center cleaning-inspection stations, dental instrument verification rooms and outpatient operating-room disinfection rooms. Used for visual defect inspection, cleaning quality verification, instrument sorting, sterilization traceability scanning and consumable storage for surgical and endoscopic instruments.

Selling Point
Modular pegboard system adapts to varied inspection workflows. Seamless SUS304 tabletop supports frequent sanitization. Multi-storage accessories maximize desktop organization. Double-sided station customization supports modern CSSD instrument quality-control upgrades.

Technical specifications

• Model: D20A
• Material: SUS304 stainless steel
• Tabletop Height: 800 mm
• Overall Dimension: 1800×700×1800 mm
• Tabletop Structure: One-piece bent stainless steel flat operation surface
• Upper Frame Features: Adjustable upright posts, top lighting bracket, double-layer storage shelves, pegboard mounting system
• Electrical: Integrated PDU power strip and top lighting system
• Accessories: Monitor swing arm; 10× LED dimmable magnifier bracket; stainless-steel storage mesh basket; blue divided material box; pull-out keyboard tray; left-side hanging bracket
• Storage: Right-side single-layer silent closed drawer
• Mobility: 4-inch TPR swivel casters with independent brakes
• Manufacturing Process: CNC laser cutting; fiber-laser precision welding; brushed polishing
• Assembly: Factory pre-assembled modular delivery
• Customization Options: Double-sided layout, tabletop size, shelf count, hanging accessories, drawer configuration, electrical fittings
