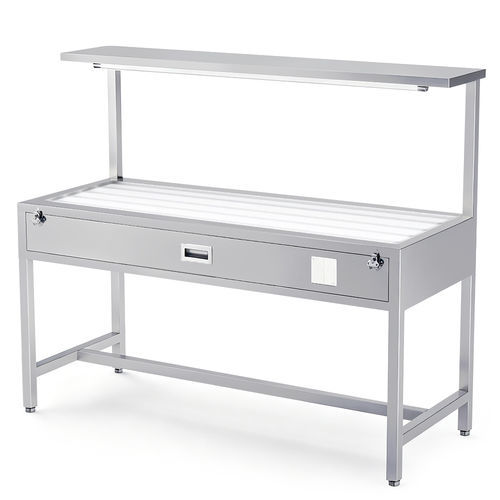

Assay laboratory workstation D17B

for clean roomsfor the pharmaceutical industryfloor-standing

Product overview
The D17B inspection workbench is designed for pharmaceutical visual inspection in controlled environments. It integrates a tempered glass light window and dual lighting to support reliable particle and appearance inspection of liquids and vials.

Core advantages

• Dual light sources (bottom light + top supplementary LED) to eliminate detection shadows
• Tempered glass inspection window with heat dissipation for stable long-term lighting
• Seamless 304 stainless steel construction for thorough disinfection and cleanroom compatibility
• Buckle-type maintenance cover for quick access and service
• Stable welded frame with adjustable anti-slip shock-absorbing feet
• Delivered pre-assembled for immediate installation

Key specifications

• Material: National standard 304 stainless steel
• Frame: 38×38 mm stainless steel square tube, wall thickness ≥ 1.0 mm
• Tabletop: Integrally bent stainless steel with built-in light inspection window
• Light panel: Tempered glass (transparent or frosted optional)
• Lighting: Bottom light plus top supplementary LED light; maintenance baffle with light switch
• Legs: Height-adjustable black anti-slip, shock-absorbing rubber feet
• Craft: Full penetration welding and fine polishing
• Assembly: Pre-assembled

Dimensions
Overall dimensions: 1000×600×1300 mm
Tabletop height: 750 mm

Applications
Suitable for hospital PIVAS, pharmaceutical clean workshops, drug testing laboratories and other sterile production or inspection environments. Used for visual inspection of infusions, ampoules, bottles and other liquid pharmaceutical products to detect foreign particles and appearance defects.

Compliance & maintenance

• Designed to meet infection control and GMP requirements
• Full stainless construction enables routine disinfection
• Buckle cover allows safe, fast access to light components for maintenance
• Durable welded frame and fine polishing reduce contamination traps

Customization & ordering

• Custom sizes available
• Light window dimensions, light source type, support brackets and glass finish (transparent/frosted) can be customized
• Provide model D17B and required specifications when ordering
