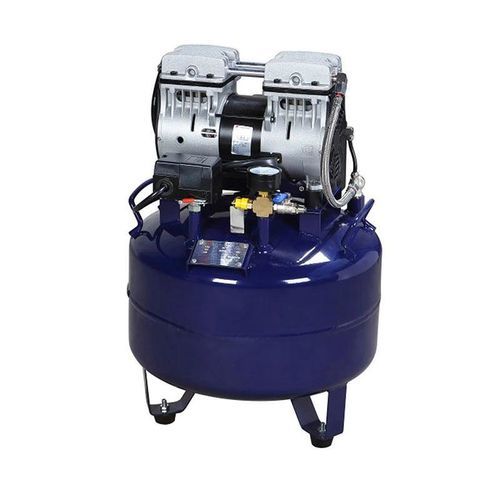

Laboratory compressor K2409dental1-workstation2-workstation
Add to favorites
Compare this product
Characteristics
- Applications
- dental, laboratory
- Number of dental workstations
- 1-workstation, 2-workstation, 3-workstation, 4-workstation
- Options and accessories
- oil-free, dry, with soundproof housing
- Pressure
Max.: 8 bar
(116.0302 psi)Min.: 5 bar
(72.5189 psi)- Flow
Max.: 210 l/min
(55.48 us gal/min)Min.: 70 l/min
(18.49 us gal/min)- Power
Max.: 1.68 kW
(2.28 hp)Min.: 0.55 kW
(0.75 hp)- Weight
Max.: 65 kg
(143.3 lb)Min.: 27 kg
(59.5 lb)- Noise level
Max.: 70 dB
Min.: 65 dB
- Length
Max.: 86 cm
(33.9 in)Min.: 46 cm
(18.1 in)- Width
Max.: 60 cm
(23.6 in)Min.: 45 cm
(17.7 in)- Height
Max.: 82 cm
(32.3 in)Min.: 68 cm
(26.8 in)
Description
Overview Designed for dental simulation training, this air compressor delivers a stable, oil-free and low-noise air supply suitable for dental schools, training centers and university labs.
Key benefits
Applications
Models / Options
Technical specifications
Key benefits
- Stable & reliable airflow — maintains consistent pressure for smooth handpiece operation and precise practice.
- Low-noise operation — noise-reduction design to support comfortable training environments.
- Oil-free, dry air supply — protects instruments and supports hygiene in simulation settings.
- Configurable for multiple workstations — available in single-unit and multi-unit configurations.
- Low maintenance design — engineered for extended operation with routine servicing.
- Compact footprint — suitable for integration in labs and classrooms with limited space.
Applications
- Dental schools
- Training centers
- Universities
Models / Options
- 2409 — One-to-One
Rated voltage: 220VAC 50Hz; Electric current: 2.6A; Power: 550W; Delivery: 70 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 32 L; Noise: 65 dB; G.W.: 27 kg; Packing size (Carton): 46 x 46 x 68 cm - 2410 — One-to-Two
Rated voltage: 220VAC 50Hz; Electric current: 3.8A; Power: 840W; Delivery: 105 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 32 L; Noise: 65 dB; G.W.: 29 kg; Packing size (Carton): 46 x 46 x 69 cm - 2411 — One-to-Two
Rated voltage: 220VAC 50Hz; Electric current: 3.8A; Power: 840W; Delivery: 105 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 40 L; Noise: 65 dB; G.W.: 33 kg; Packing size (Carton): 53 x 53 x 72 cm - 2412 — One-to-Three
Rated voltage: 220VAC 50Hz; Electric current: 5A; Power: 1100W; Delivery: 140 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 40 L; Noise: 65 dB; G.W.: 38 kg; Packing size (Carton): 53 x 53 x 77 cm - 2413 — One-to-Three
Rated voltage: 220VAC 50Hz; Electric current: 5.2A; Power: 1100W; Delivery: 140 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 65 L; Noise: 70 dB; G.W.: 61 kg; Packing size (Carton): 60 x 60 x 82 cm - 2414 — One-to-Four
Rated voltage: 220VAC 50Hz; Electric current: 7.6A; Power: 1680W; Delivery: 210 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 65 L; Noise: 70 dB; G.W.: 65 kg; Packing size (Carton): 60 x 60 x 82 cm - 2415 — One-to-Three
Rated voltage: 220VAC 50Hz; Electric current: 5.2A; Power: 1100W; Delivery: 140 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 60 L; Noise: 70 dB; G.W.: 53 kg; Packing size (Carton): 86 x 45 x 74 cm - 2416 — One-to-Four
Rated voltage: 220VAC 50Hz; Electric current: 7.6A; Power: 1680W; Delivery: 210 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank volume: 60 L; Noise: 70 dB; G.W.: 57 kg; Packing size (Carton): 86 x 45 x 74 cm
Technical specifications
- Air supply: Oil-free, dry air suitable for dental simulation environments
- Noise: Typically 65 dB (larger tank models up to 70 dB)
- Configurations: Single-unit and multi-unit options (models 2409–2416)
- Tank volumes: 32 L, 40 L, 60 L or 65 L depending on model
- Operating pressure: Start pressure 0.5 MPa; Capacity pressure 0.8 MPa
- Voltage / Frequency: 220 VAC, 50 Hz
- Power range: 550 W to 1680 W (model-dependent)
- Flow range: Approximately 70 L/min to 210 L/min depending on model
- Intended use: Dental schools, training centers, universities, multi-workstation labs
