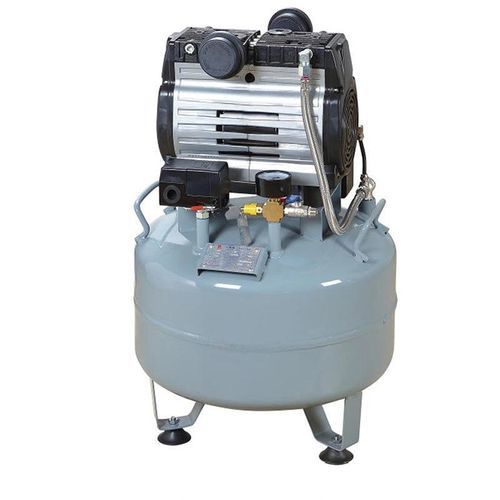

Laboratory compressor JG-K2401-08

dentalfor dental laboratories8-workstation

Overview
This oil-free dental air compressor is engineered for dental simulation training. It supplies clean, dry compressed air with low noise and low vibration to support a comfortable pre-clinical training environment and reliable operation of multiple dental simulators.

Key Features

• Multi-simulator support: Models configured to supply two or more dental simulation units simultaneously.
• Oil-free technology: Delivers contaminant-free, dry compressed air suitable for dental education use.
• Low noise and vibration: Designed to minimize disturbance in training rooms.
• Stable output: Consistent pressure and flow for uninterrupted simulation sessions.
• Compact layout and durable components: Space-efficient footprint with maintenance-friendly design.

Models / Variants

• 2401 Model One to Two: Rated voltage: 220VAC 50Hz; Electric current: 4A; Power: 900W; Flow: 130 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 32 L; Noise: 62 dB; G.W.: 30 kg; Packing size (Carton): 46 x 46 x 72 cm.
• 2402 Model One to Four: Rated voltage: 220VAC 50Hz; Electric current: 8A; Power: 1800W; Flow: 280 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 60 L; Noise: 65 dB; G.W.: 52 kg; Packing size (Carton): 86 x 45 x 78 cm.
• 2403 Model One to Six: Rated voltage: 220VAC 50Hz; Electric current: 10A; Power: 2200W; Flow: 400 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 128 L; Noise: 75 dB; G.W.: 110 kg; Packing size (Carton): 115 x 55 x 105 cm.
• 2404 Model One to Eight: Rated voltage: 380VAC 50Hz; Electric current: 4.6A; Power: 3000W; Flow: 490 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 128 L; Noise: 75 dB; G.W.: 118 kg; Packing size (Carton): 115 x 55 x 108 cm.
• 2405 Model One to Ten: Rated voltage: 220VAC 50Hz; Electric current: 16A; Power: 3600W; Flow: 560 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 128 L; Noise: 76 dB; G.W.: 116 kg; Packing size (Carton): 115 x 55 x 98 cm.
• 2406 Model One to Twelve: Rated voltage: 220VAC 50Hz; Electric current: 24A; Power: 5400W; Flow: 840 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 128 L; Noise: 76 dB; G.W.: 136 kg; Packing size (Carton): 115 x 55 x 98 cm.
• 2407 Model One to Sixteen: Rated voltage: 380VAC 50Hz; Electric current: 9.1A; Power: 6000W; Flow: 980 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 300 L; Noise: 78 dB; G.W.: 130 kg; Fuselage packing size (Carton): 80 x 60 x 120 cm; Air tank packing size: 70 x 70 x 165 cm.
• 2408 Model One to Twenty: Rated voltage: 380VAC 50Hz; Electric current: 13.8A; Power: 9000W; Flow: 1470 L/min; Start pressure: 0.5 MPa; Capacity pressure: 0.8 MPa; Air tank: 300 L; Noise: 80 dB; G.W.: 195 kg; Fuselage packing size (Carton): 120 x 80 x 120 cm; Air tank packing size: 70 x 70 x 165 cm.

Applications
Suitable for dental simulation laboratories, pre-clinical training centers, dental schools and training institutions that require a clean, low-maintenance air supply for multiple simulators.

Specifications

• Technology: Oil-free compressor providing clean, dry air.
• Noise: Model-dependent, approximately 62–80 dB.
• Start pressure: 0.5 MPa (all variants).
• Capacity pressure: 0.8 MPa (all variants).
• Air tank volumes: 32 L, 60 L, 128 L or 300 L depending on model.
• Support capability: Supplies two or more dental simulation units depending on model.
• Power / Flow range: From 900W / 130 L/min up to 9000W / 1470 L/min (see Models / Variants for details).
• Dimensions & packing: See per-model entries in Models / Variants above.
